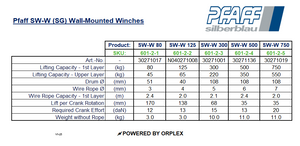

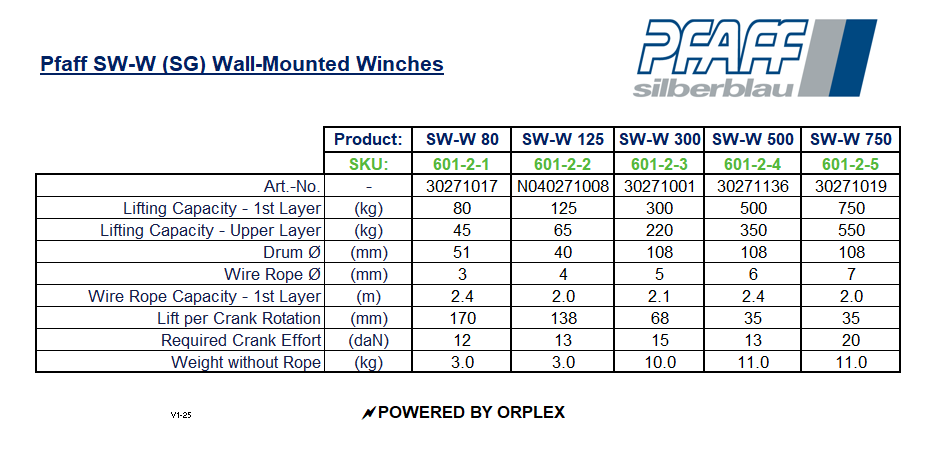

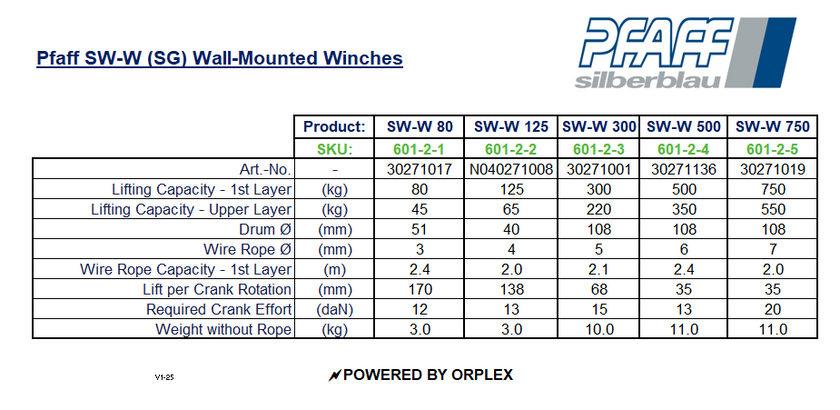

Pfaff SW-W (SG) Wall-Mounted Winch Specification Table

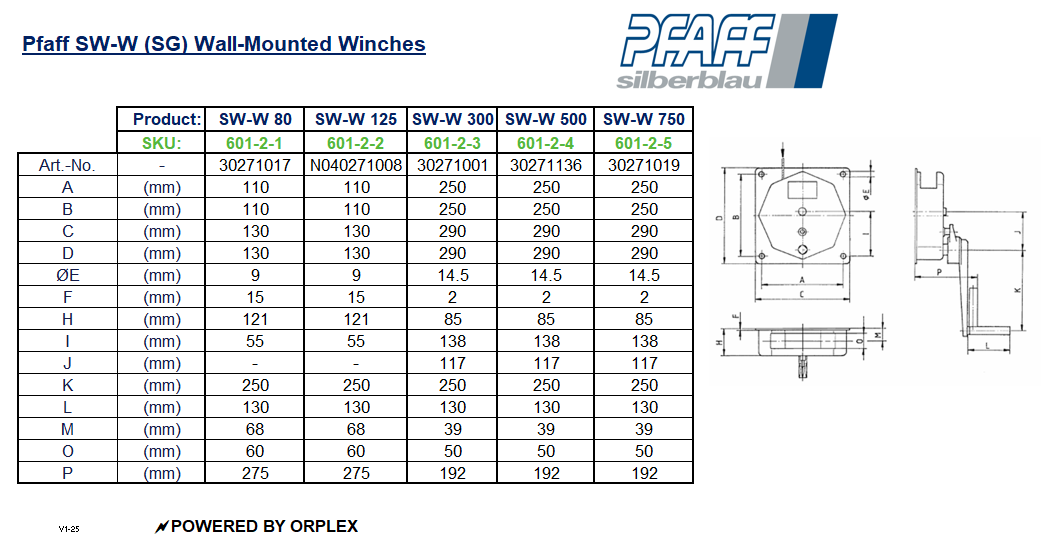

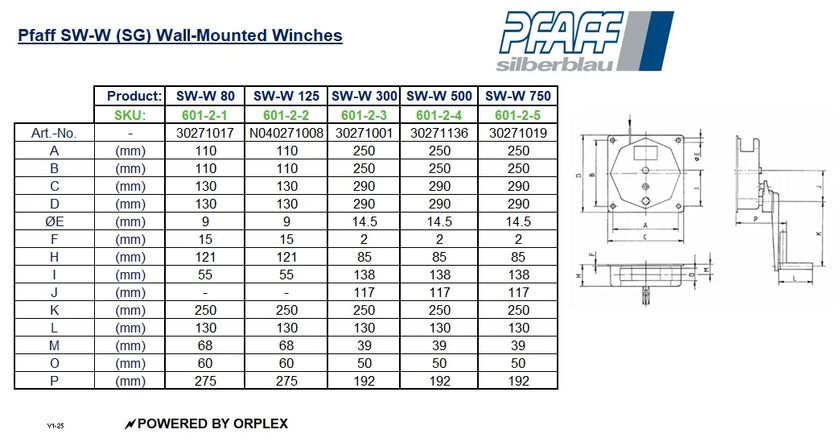

Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
    Pfaff SW-W (SG) 80 - 125 kg Wall-Mounted Winch
    Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
    Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W (SG) 80 - 125 kg Wall-Mounted Winch
Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W (SG) 80 - 125 kg Wall-Mounted Winch
Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
    Pfaff SW-W (SG) 80 - 125 kg Wall-Mounted Winch
    Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
    Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W (SG) 80 - 125 kg Wall-Mounted Winch
Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams

Product Information

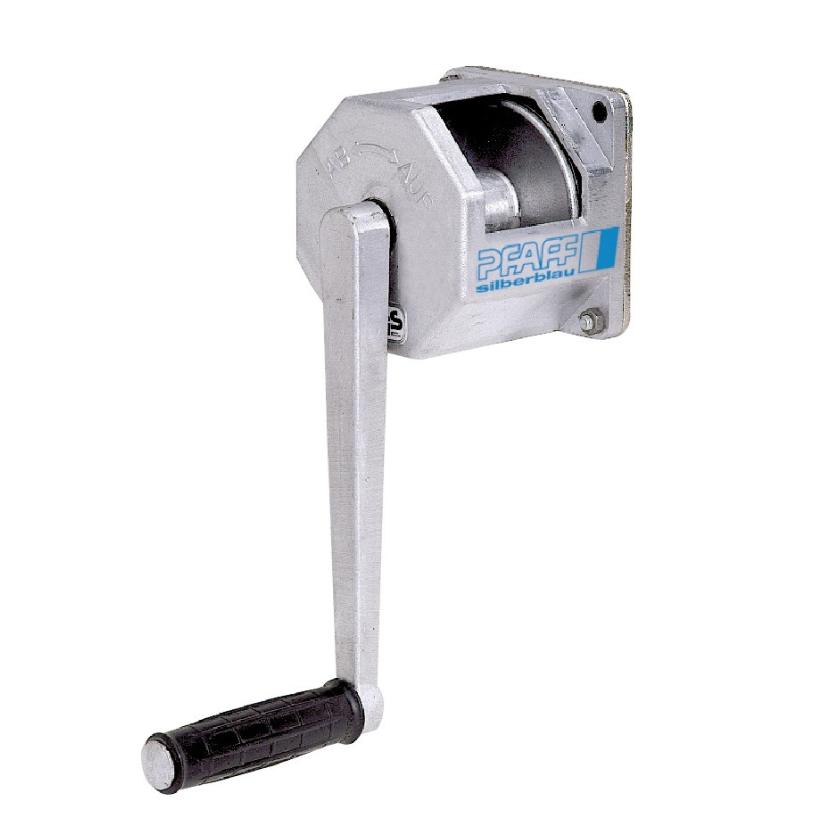

Pfaff SW-W (SG) 80 Wall-Mounted Winch - 80kg Capacity with Aluminium Housing

Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building, this model supports loads up to 80kg. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.

Features and benefits include:

  • Robust aluminium housing for models SW-W 80 and SW-W 125, proven steel plate design for models SW-W 300 - 750.
  • Spur gear drive for optimal efficiency and comfortable handling. Direct drive for loads up to 125 kg.
  • The low-noise safety spring brake safely holds the load in every position.
  • Removable hand crank for models SW-W 80 and SW-W 125, foldable crank for models SW-W 300 - 750.
  • Easy and quick mounting onto walls.
  • Wire rope sold separately.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff SW-W (SG) 80 Wall-Mounted Winch - 80kg Capacity with Aluminium Housing

Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building, this model supports loads up to 80kg. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.

Features and benefits include:

  • Robust aluminium housing for models SW-W 80 and SW-W 125, proven steel plate design for models SW-W 300 - 750.
  • Spur gear drive for optimal efficiency and comfortable handling. Direct drive for loads up to 125 kg.
  • The low-noise safety spring brake safely holds the load in every position.
  • Removable hand crank for models SW-W 80 and SW-W 125, foldable crank for models SW-W 300 - 750.
  • Easy and quick mounting onto walls.
  • Wire rope sold separately.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff-silberblau by Pfaff-silberblau

Pfaff SW-W (SG) 80KG Wall-Mounted Winch

£268.92
£268.92
Tax included. Shipping calculated at checkout.
