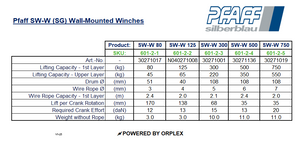

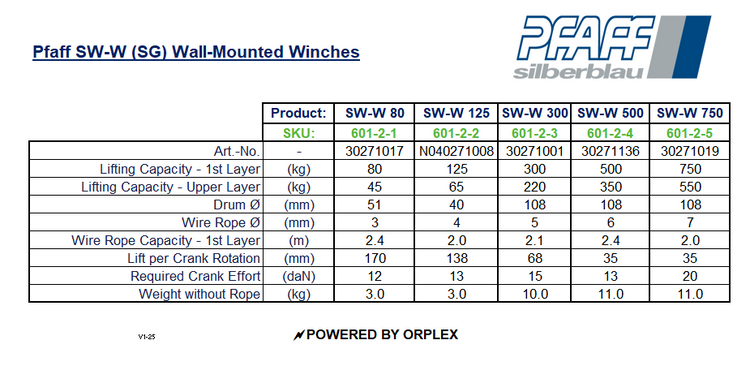

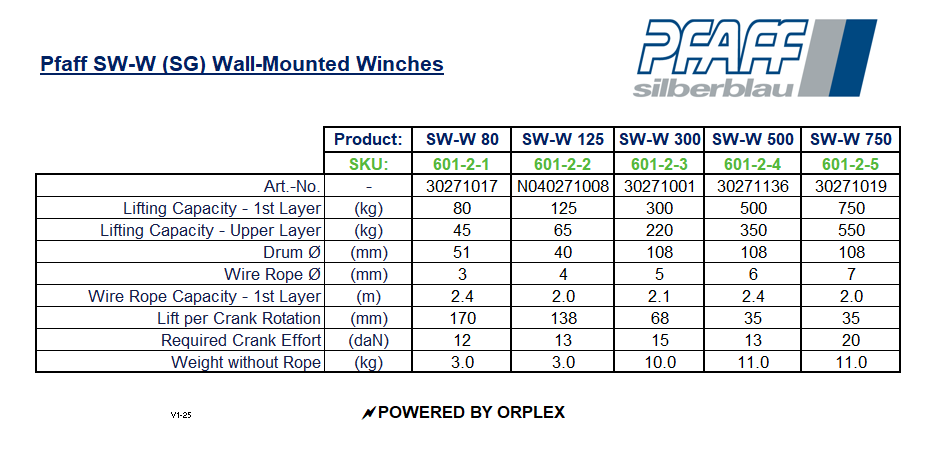

Pfaff SW-W (SG) Wall-Mounted Winch Specification Table

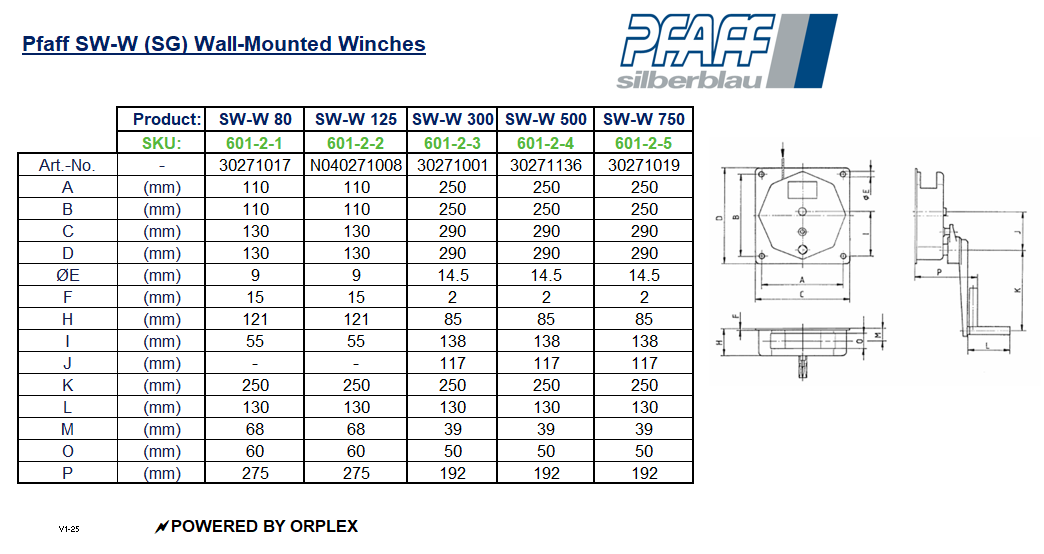

Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
    Pfaff SW-W (SG) 300-750kg Wall-Mounted Winch
    Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
    Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W (SG) 300-750kg Wall-Mounted Winch
Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W (SG) 300-750kg Wall-Mounted Winch
Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
    Pfaff SW-W (SG) 300-750kg Wall-Mounted Winch
    Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
    Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W (SG) 300-750kg Wall-Mounted Winch
Pfaff SW-W (SG) Wall-Mounted Winch Specification Table
Pfaff SW-W (SG) Wall-Mounted Winch Dimensions Table with Diagrams

Product Information

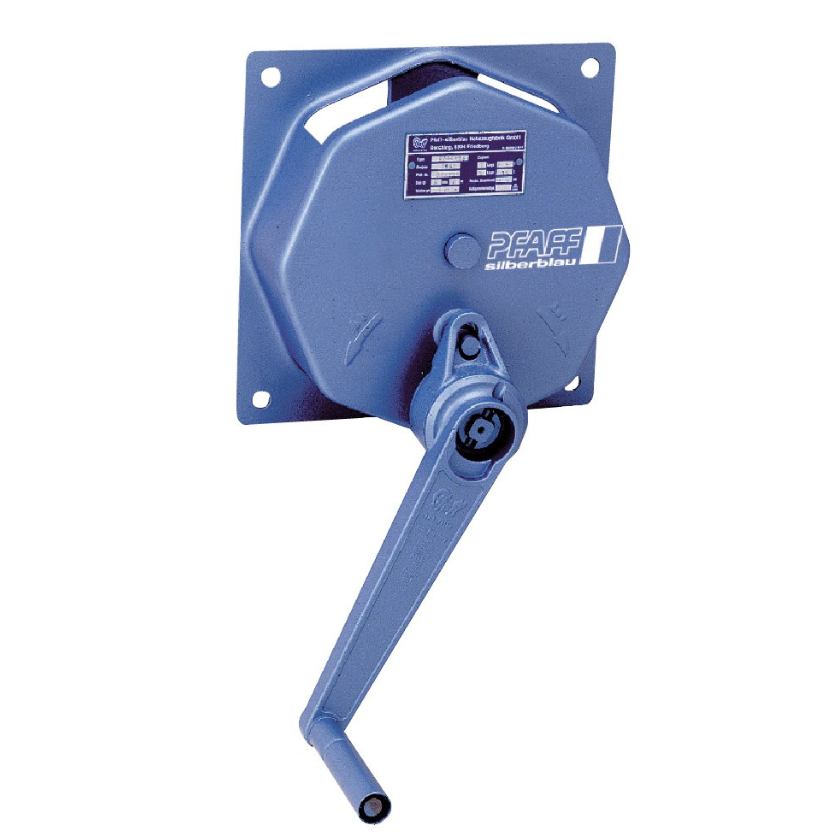

Pfaff SW-W 500 (SG) Wall-Mounted Winch - 500kg Capacity with Steel Housing

Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building, this model supports loads up to 500kg. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.

Features and benefits include:

  • Robust aluminium housing for models SW-W 80 and SW-W 125, proven steel plate design for models SW-W 300, SW-W 500 and SW-W 750.
  • Spur gear drive for optimal efficiency and comfortable
    handling.
  • The low-noise safety spring brake safely holds the load in every position.
  • Removable hand crank for models SW-W 80 and SW-W 125, foldable crank for models SW-W 300, SW-W 500 and SW-W 750.
  • Easy and quick mounting onto walls.
  • Wire rope sold separately.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff SW-W 500 (SG) Wall-Mounted Winch - 500kg Capacity with Steel Housing

Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building, this model supports loads up to 500kg. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.

Features and benefits include:

  • Robust aluminium housing for models SW-W 80 and SW-W 125, proven steel plate design for models SW-W 300, SW-W 500 and SW-W 750.
  • Spur gear drive for optimal efficiency and comfortable
    handling.
  • The low-noise safety spring brake safely holds the load in every position.
  • Removable hand crank for models SW-W 80 and SW-W 125, foldable crank for models SW-W 300, SW-W 500 and SW-W 750.
  • Easy and quick mounting onto walls.
  • Wire rope sold separately.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff-silberblau by Pfaff-silberblau

Pfaff SW-W (SG) 500KG Wall-Mounted Winch

£709.62
£709.62
Tax included. Shipping calculated at checkout.
