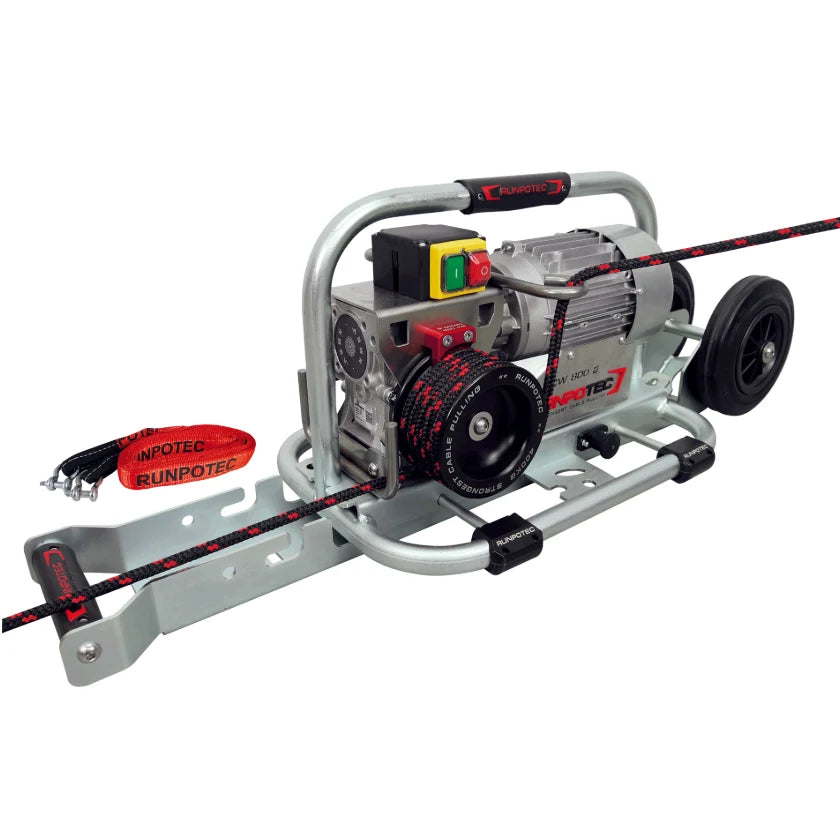

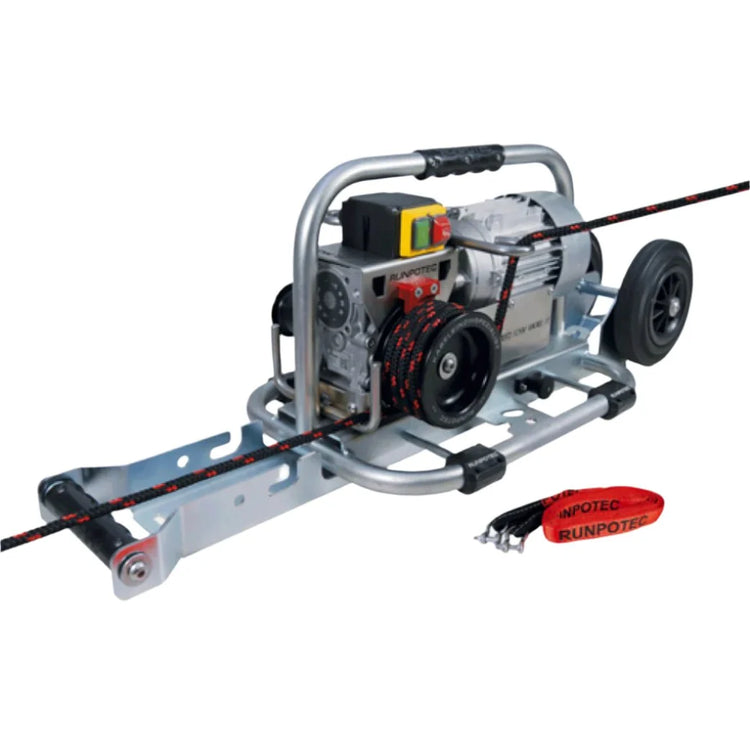

RUNPOTEC - 230V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

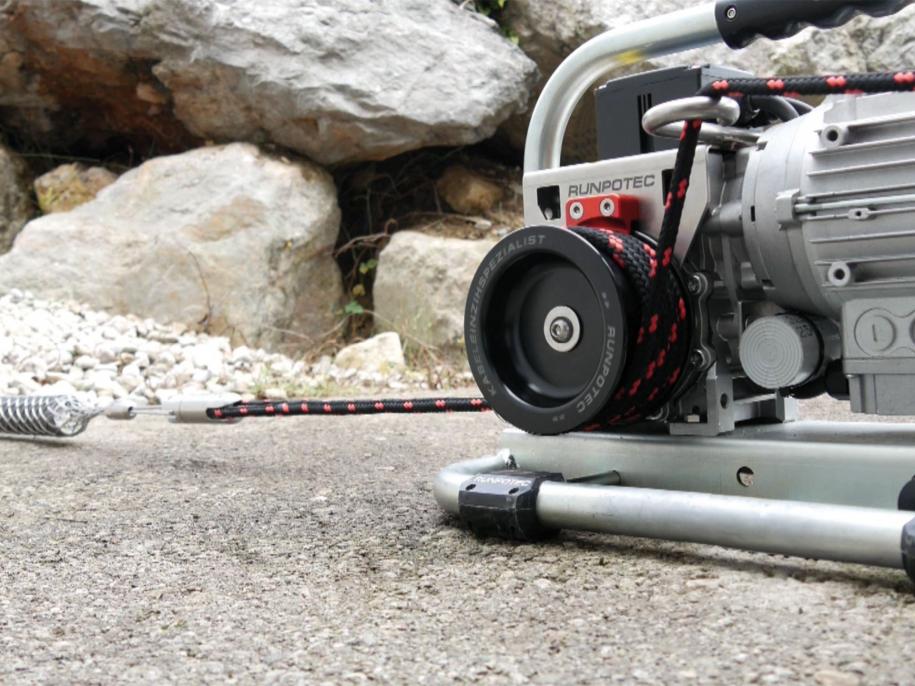

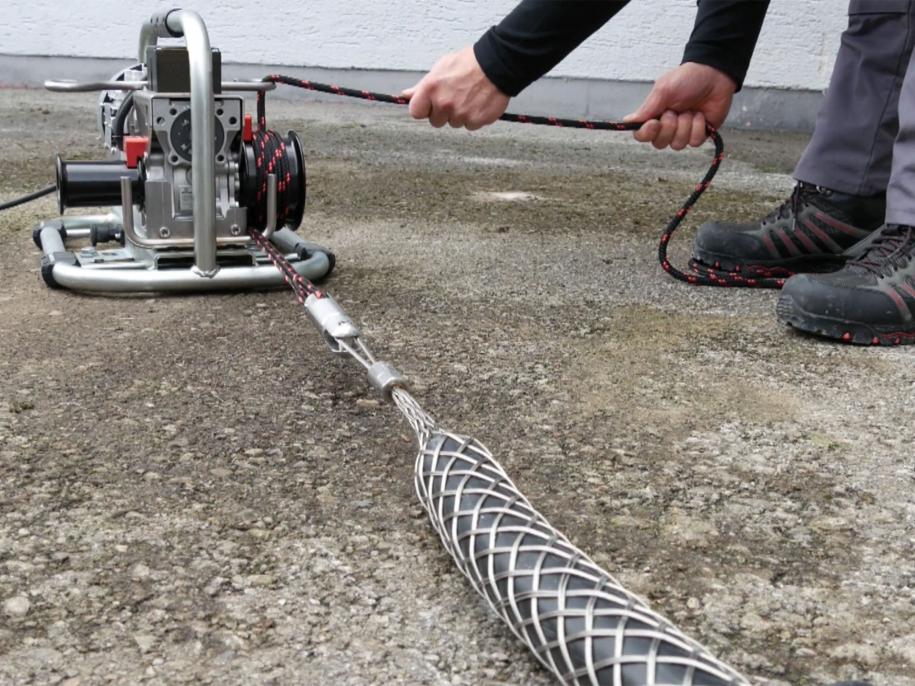

The CW 800 E capstan winch is ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg.

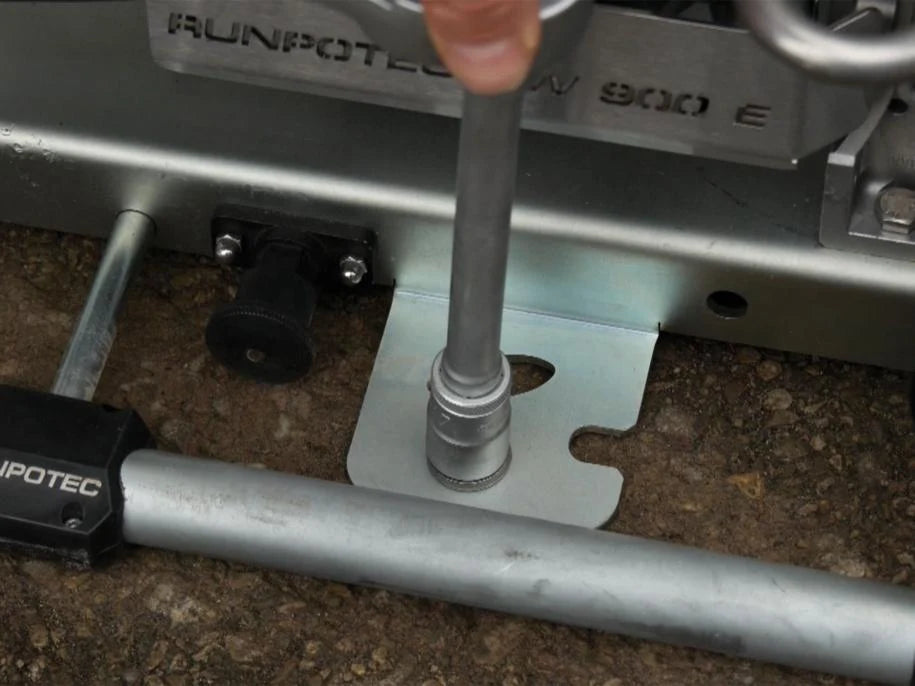

The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E capstan winch and fasten it using the two fixing bolts.

The whole unit only weighs around 41kgs, making it suitable to move around to different locations on site.

Safety instructions

Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

Optimal area of application

for horizontal cable pulling.

Scope of supply

1 x CW 800 E 230V capstan winch, 1 x trolley mounting rail, 1 x 3 m strap

Advantages

  • One person can pull up to 800 kg with the CW 800 E capstan winch
  • Selectable traction force or traction speed 800 kg | 400 kg
  • Small, compact, handy
  • Many mounting options

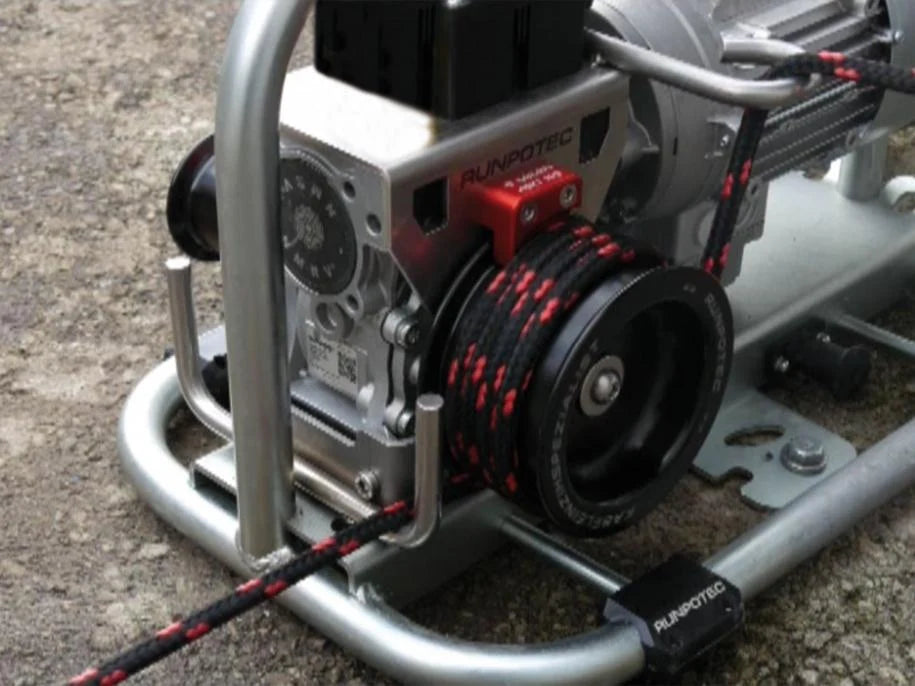

  • Safety rope guide
  • Overload protection
  • IP55 Rated

NOTE - THIS PRODUCT HAS A LEADTIME OF 4 TO 5 WEEKS FROM ORDER IF OUT OF STOCK, GENERAL LEAD-TIME IS 2-3 DAYS FROM ORDER

RUNPOTEC recommends the use of Ø10 mm polyester for the pulling rope as this has the ideal wrap factor

RUNPOTEC - 230V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

The CW 800 E capstan winch is ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg.

The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E capstan winch and fasten it using the two fixing bolts.

The whole unit only weighs around 41kgs, making it suitable to move around to different locations on site.

Safety instructions

Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

Optimal area of application

for horizontal cable pulling.

Scope of supply

1 x CW 800 E 230V capstan winch, 1 x trolley mounting rail, 1 x 3 m strap

Advantages

  • One person can pull up to 800 kg with the CW 800 E capstan winch
  • Selectable traction force or traction speed 800 kg | 400 kg
  • Small, compact, handy
  • Many mounting options
  • Safety rope guide
  • Overload protection
  • IP55 Rated

NOTE - THIS PRODUCT HAS A LEADTIME OF 4 TO 5 WEEKS FROM ORDER IF OUT OF STOCK, GENERAL LEAD-TIME IS 2-3 DAYS FROM ORDER

RUNPOTEC recommends the use of Ø10 mm polyester for the pulling rope as this has the ideal wrap factor

RUNPOTEC by RUNPOTEC

RUNPOTEC CW 800 E 230V Capstan Winch with steel trolley, rail & strap - 800kg

Regular price
£2,430.00
Sale price
£2,430.00
Regular price
Tax included. Shipping calculated at checkout.

Translation missing: en.products.product.sku:123-1-48
