W-K LAMBDA (300KG)

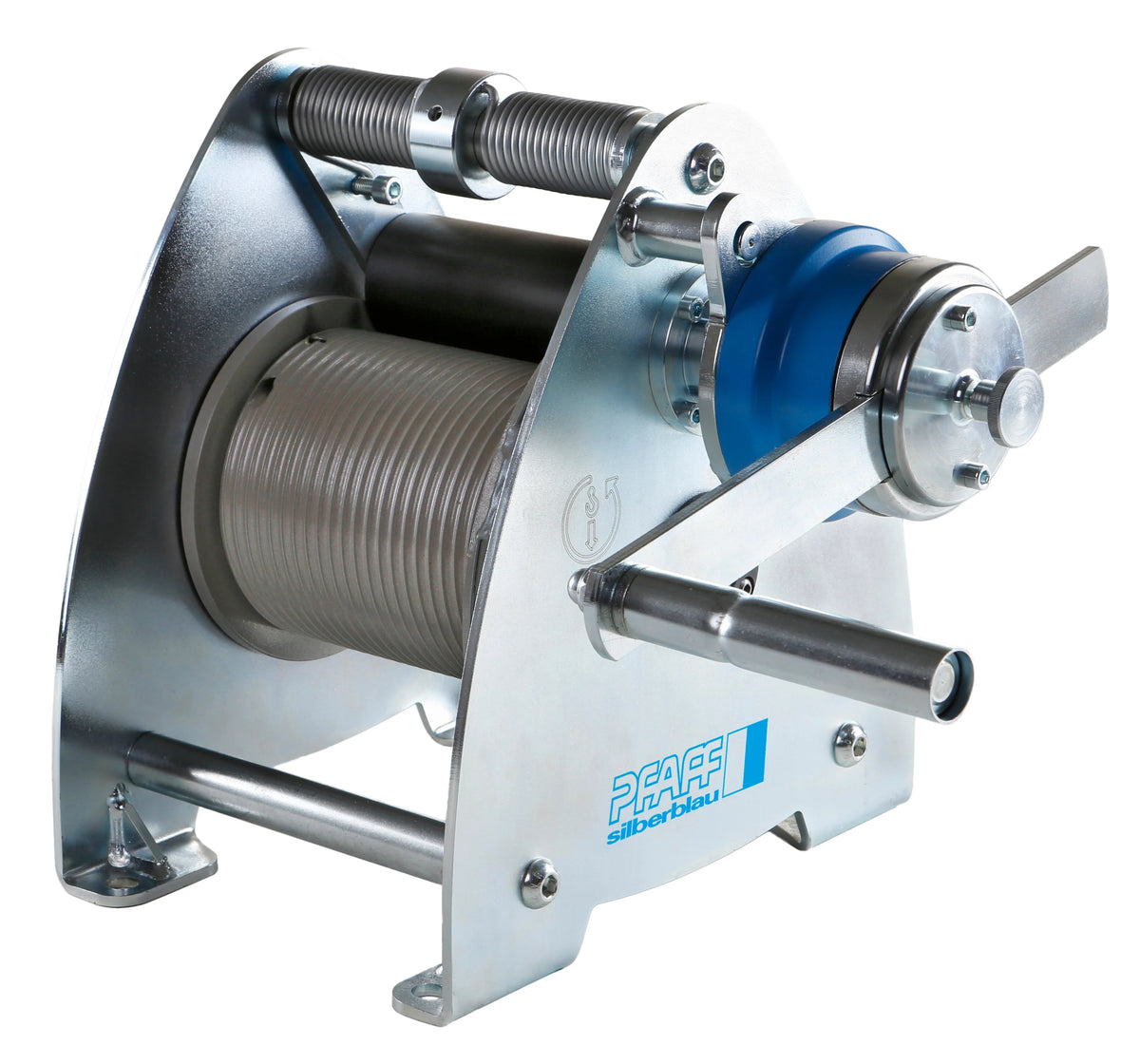

The Pfaff SW-K Lambda BGVC1 wire rope winch is designed for precision lifting and load-holding applications. Engineered with a grooved drum for single-layer winding, it offers extended wire rope service life with an 18:1 ratio between drum and rope diameter. The safety spring double brake system ensures automatic load-holding at any position, making it ideal for demanding environments.

Recommended Wire Rope: DIN 3060 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

Key Features

• Grooved drum for single-layer winding, enhancing wire rope longevity.
• 18:1 drum-to-rope ratio increases service life.
• Double safety spring brake system automatically holds the load in any position.

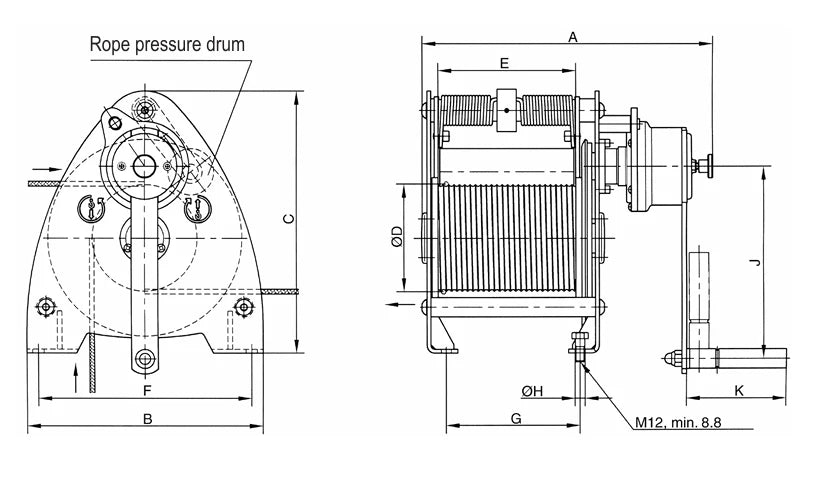

• Spring-loaded rope pressure drum for improved coiling.
• Spur gear drive ensures efficient load handling
• Gear rated to twice the nominal load for added durability.

Generally supplied 15 working days after order, for a detailed quotation please email sales@rigginguk.co.uk

Optional Accessories

• Drum extension for increased wire rope capacity.
• Special grooved drum for multi-layer wire rope winding.
• Wire rope (sold separately)

Safety Guidelines:

• Operation, installation, and maintenance must be performed by qualified personnel.

• Regular inspections are mandatory:

• Daily checks: Brake function, rope condition, load attachment, and support structure.

• Annual UVV inspection by a certified expert.

• Comprehensive inspection at least every 4 years or after modifications.

Prohibited Actions:

• Never leave a load hanging unsecured.

• Do not allow the rope to swing or drop freely.

• Avoid touching moving parts

Rope Guidelines:

• Must be wound in a single layer on the grooved drum.

• Minimum 3 full windings must remain on the drum when fully extended.

• Regularly inspect according to DIN 15020 standards.
