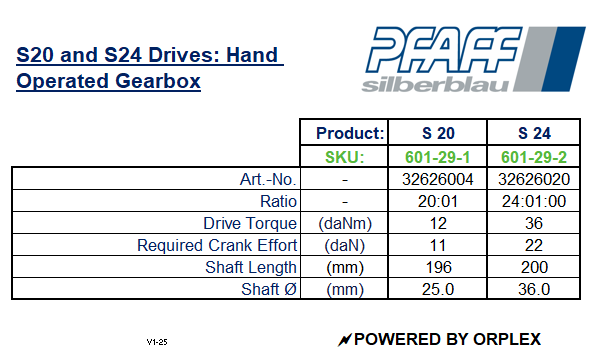

Pfaff S Worm Gear Drive – Hand Operated Gearbox Specification Table

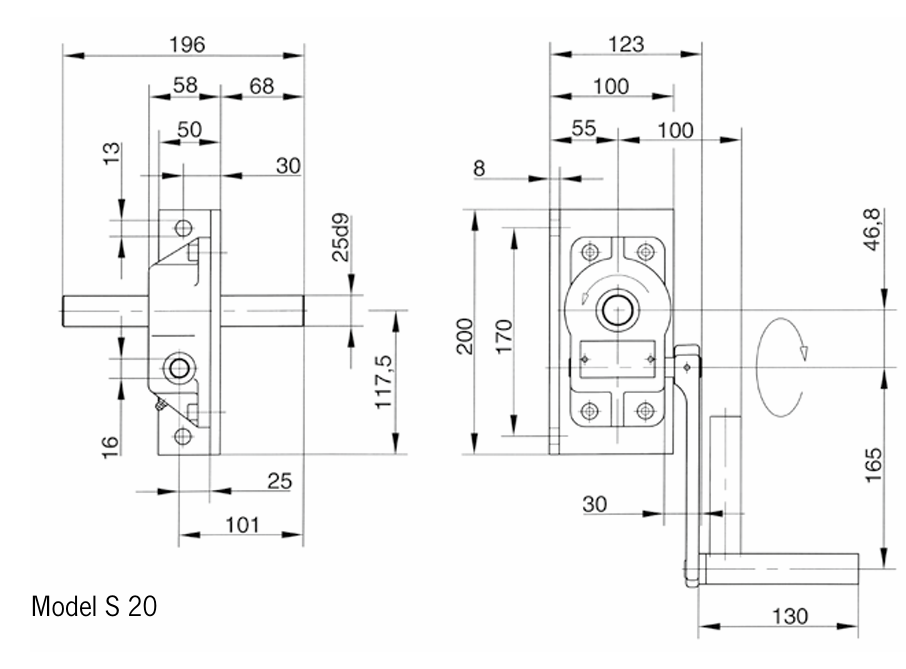

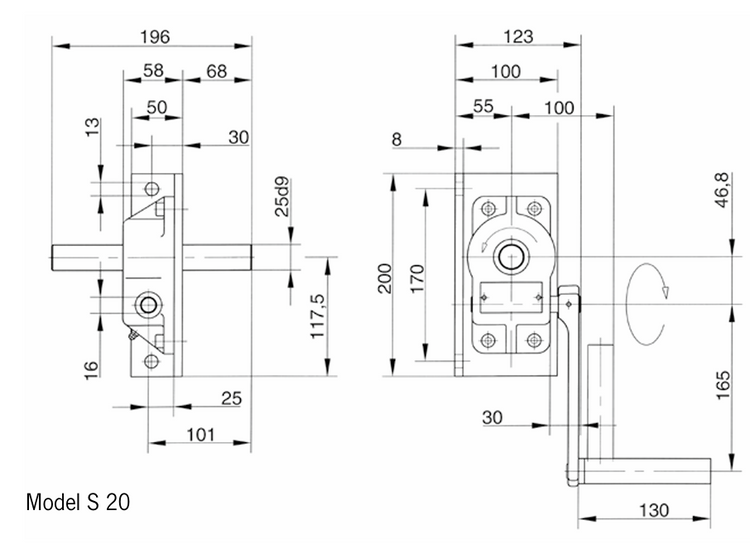

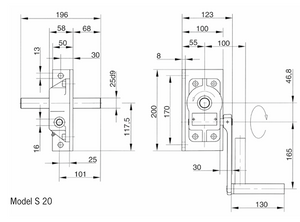

Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1 Dimensions Diagram
Lubrication requirements for Pfaff S20 and S24 Gear boxes
    Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1
    Pfaff S Worm Gear Drive – Hand Operated Gearbox Specification Table
    Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1 Dimensions Diagram
    Lubrication requirements for Pfaff S20 and S24 Gear boxes
Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1
Pfaff S Worm Gear Drive – Hand Operated Gearbox Specification Table
Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1 Dimensions Diagram
Lubrication requirements for Pfaff S20 and S24 Gear boxes
Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1
Pfaff S Worm Gear Drive – Hand Operated Gearbox Specification Table
Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1 Dimensions Diagram
Lubrication requirements for Pfaff S20 and S24 Gear boxes
    Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1
    Pfaff S Worm Gear Drive – Hand Operated Gearbox Specification Table
    Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1 Dimensions Diagram
    Lubrication requirements for Pfaff S20 and S24 Gear boxes
Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1
Pfaff S Worm Gear Drive – Hand Operated Gearbox Specification Table
Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1 Dimensions Diagram
Lubrication requirements for Pfaff S20 and S24 Gear boxes

Product Information

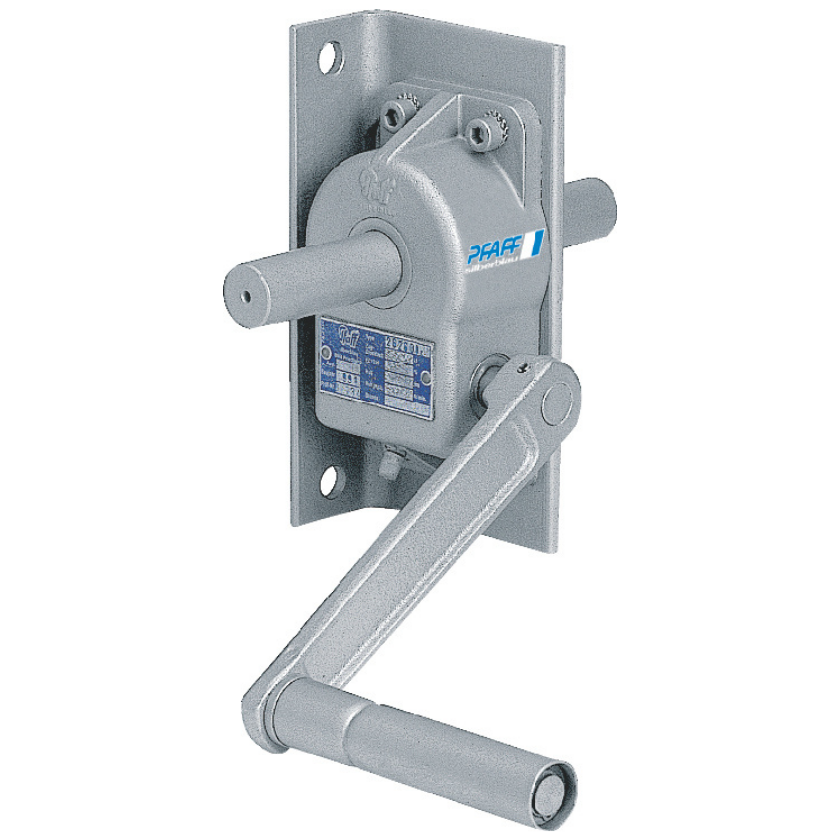

Pfaff S20 Worm Gear Drive – Hand Operated Gearbox Ratio 20:1

The S 20 and S 24 drive units with self-locking worm gear (at standstill) secure the load in any position and can be used universally.

The spectrum ranges from applications in constructions for moving or rotating loads, as gearboxes for rope drums, for sprockets, or as a rotary drive.

Equipment and processing

  • Enclosed housing for the protection of parts inside
  • Enclosed and precisely machined gear for little effort and a long service life
  • Ratio 20:1 and 24:1

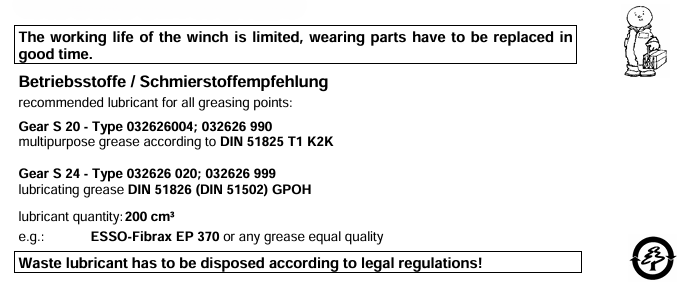

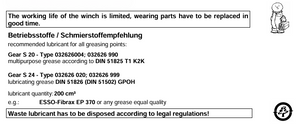

Lubrication Requirements

Gear S 20 - Type 032626004; 032626 990
multipurpose grease according to DIN 51825 T1 K2K

Gear S 24 - Type 032626 020; 032626 999
lubricating grease DIN 51826 (DIN 51502) GPOH

Lubricant quantity: 200 cm³
e.g. ESSO-Fibrax EP 370 or any grease equal quality

Pfaff S20 Worm Gear Drive – Hand Operated Gearbox Ratio 20:1

The S 20 and S 24 drive units with self-locking worm gear (at standstill) secure the load in any position and can be used universally.

The spectrum ranges from applications in constructions for moving or rotating loads, as gearboxes for rope drums, for sprockets, or as a rotary drive.

Equipment and processing

  • Enclosed housing for the protection of parts inside
  • Enclosed and precisely machined gear for little effort and a long service life
  • Ratio 20:1 and 24:1

Lubrication Requirements

Gear S 20 - Type 032626004; 032626 990
multipurpose grease according to DIN 51825 T1 K2K

Gear S 24 - Type 032626 020; 032626 999
lubricating grease DIN 51826 (DIN 51502) GPOH

Lubricant quantity: 200 cm³
e.g. ESSO-Fibrax EP 370 or any grease equal quality

Pfaff-silberblau by Pfaff-silberblau

Pfaff S20 Worm Gear Drive – Hand Operated Gearbox 20:1

£440.86
£440.86
Tax included. Shipping calculated at checkout.

601-29-1
