The manual winch is a safety device governed by strict technical rules and whose design is framed by the European standard EN13157 A1.
Winches with new generation high safety self-braking system.- Lifting capacity up to 700kg
- Towing (rolling load capacity slope 20% - up to 1,200kg

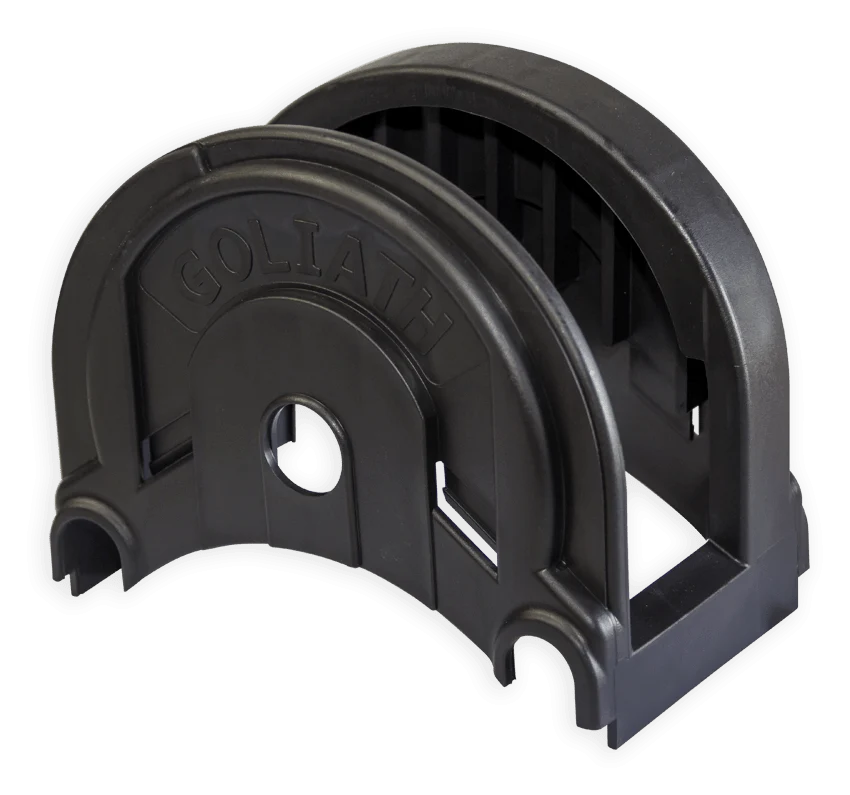

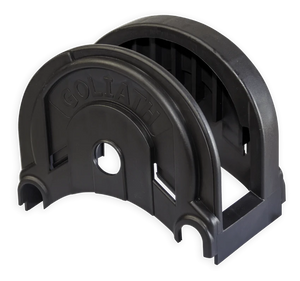

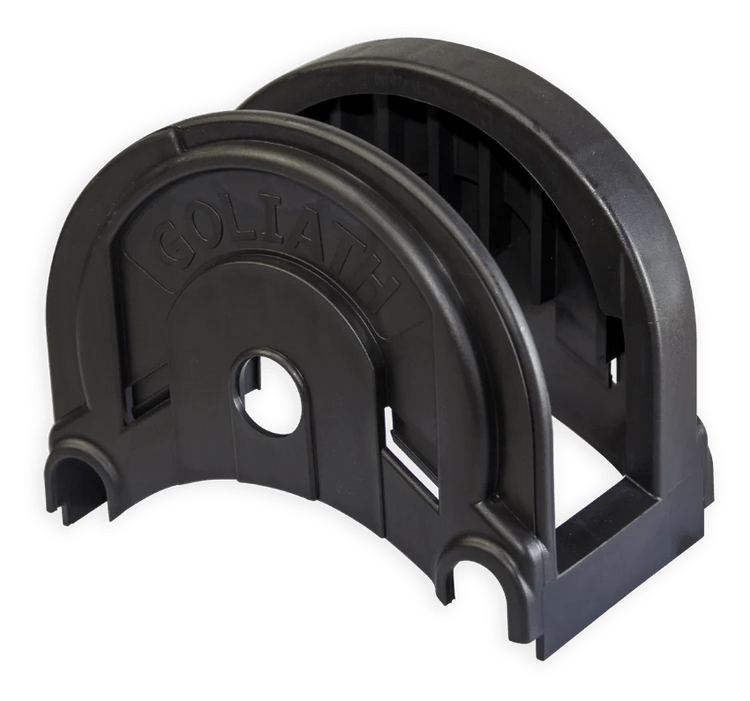

- Single speed, protection cover
- Handle: fixed, removable, two, left and right
- Quick cable mounting

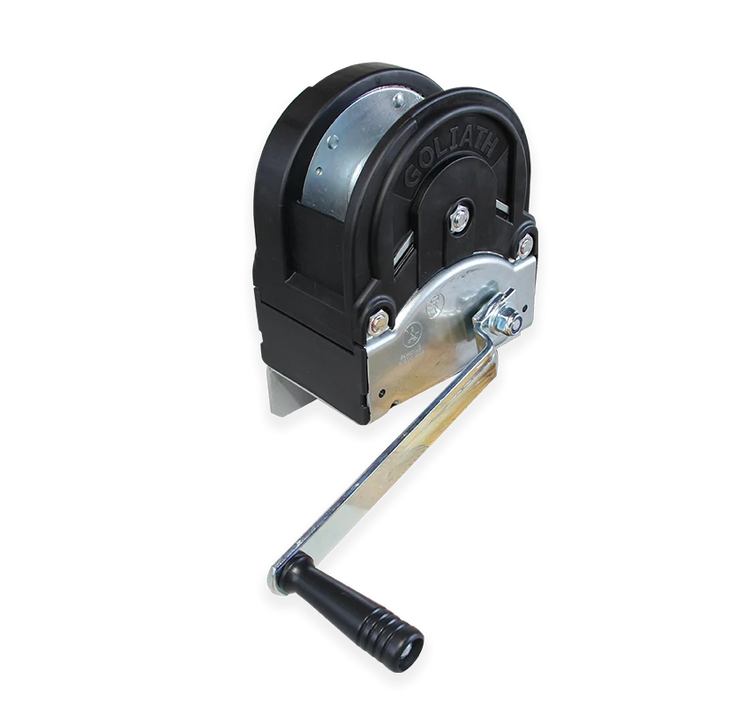

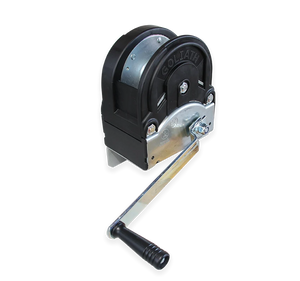

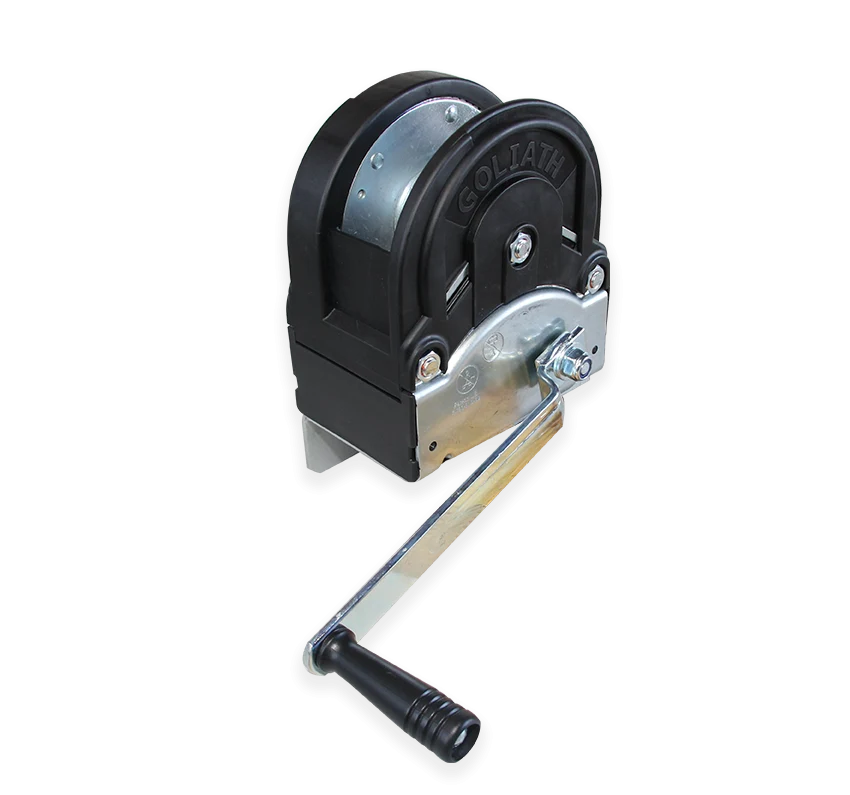

Model TA900 (SKU 151-15-12) Suits: 6mm DIA Cable

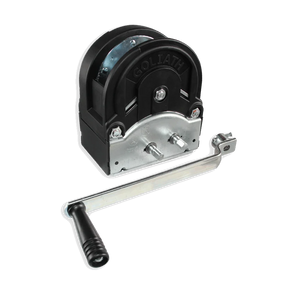

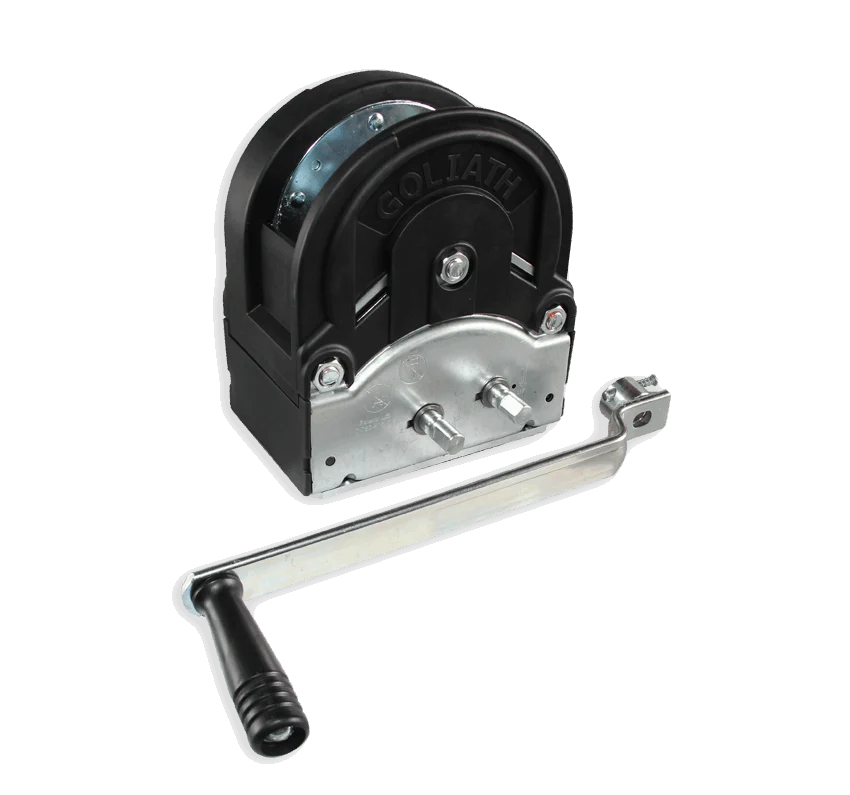

Model TA1200 (SKU 151-15-13) Suits: 7mm DIA Cable
GOLIATH has been designing and making, for more than 30 years, winches that are used in a great number of industries.
| Type | TA900 | TA1200 |
|---|---|---|
| SKU | 151-15-12 | 151-15-13 |
| Lifting Capacity 1st Layer: | 700kg | 900kg |
| Lifting Capacity Last Layer: | 325kg | 500kg |
| Cable 1 Ø (mm) / length (m) | 6 / 15 | 7 / 10 |
| Cable 2 Ø (mm) / length (m) | 5 / 22 | 6 / 13 |
| Number of Speeds | 1 | 2 |
| Reduction Ratio 1 | 1/4.85 | 1/4.85 |
| Reduction Ratio 2 | - | 1/9.71 |
| Reduction Ratio 3 | - | - |
| Drum Hub Ø | 54mm | 63mm |
| Type of Winch | Lateral. Setup/Removable Handle | Lateral. Setup/Removable Hand |
| Handle | Removable | Removable |
| Handle Length: | 290mm | 290mm |
| Weight: | 5.7kg | 6.6kg |
The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
The manual winch is a safety device governed by strict technical rules and whose design is framed by the European standard EN13157 A1.
Winches with new generation high safety self-braking system.- Lifting capacity up to 700kg
- Towing (rolling load capacity slope 20% - up to 1,200kg
- Single speed, protection cover
- Handle: fixed, removable, two, left and right
- Quick cable mounting
Model TA900 (SKU 151-15-12) Suits: 6mm DIA Cable
Model TA1200 (SKU 151-15-13) Suits: 7mm DIA Cable
GOLIATH has been designing and making, for more than 30 years, winches that are used in a great number of industries.
| Type | TA900 | TA1200 |
|---|---|---|
| SKU | 151-15-12 | 151-15-13 |
| Lifting Capacity 1st Layer: | 700kg | 900kg |
| Lifting Capacity Last Layer: | 325kg | 500kg |
| Cable 1 Ø (mm) / length (m) | 6 / 15 | 7 / 10 |
| Cable 2 Ø (mm) / length (m) | 5 / 22 | 6 / 13 |
| Number of Speeds | 1 | 2 |
| Reduction Ratio 1 | 1/4.85 | 1/4.85 |
| Reduction Ratio 2 | - | 1/9.71 |
| Reduction Ratio 3 | - | - |
| Drum Hub Ø | 54mm | 63mm |
| Type of Winch | Lateral. Setup/Removable Handle | Lateral. Setup/Removable Hand |
| Handle | Removable | Removable |
| Handle Length: | 290mm | 290mm |
| Weight: | 5.7kg | 6.6kg |
The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
