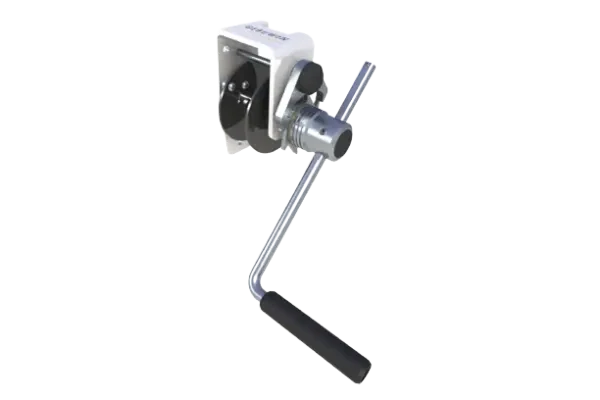

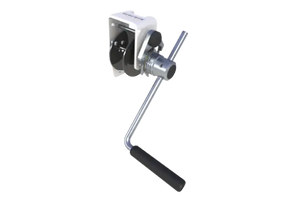

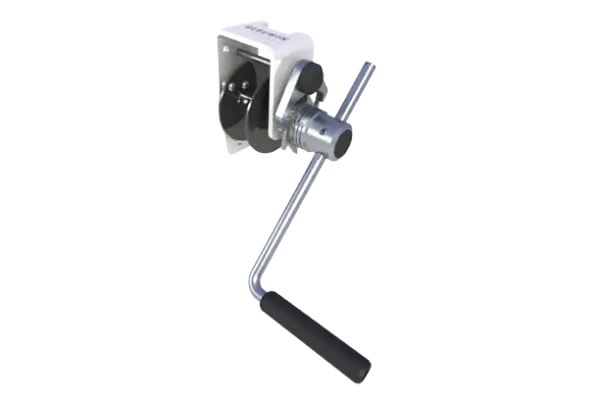

Gebuwin ATEX Spur Gear Hand Winch 150kg

This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load in any position
  • cable outlet upwards
  • adjustable crank
  • suitable for wall mounting
  • 1 layer of paint

Spec

Capacity 1st layer

150 kg
Capacity 4th layer

98 kg
Capacity top layer

67 kg
Rope diameter-Ø

4 mm
Rope storage 1st layer

0,7 meter
Rope storage 4th layer

4,9 meter
Rope storage top layer

13,1 meter
Lift per crank rotation

122 mm
Crank effort at full load

10 daN
Weight (without rope)

4 kg





Downloads

Gebuwin ATEX Spur Gear Hand Winch 150kg

This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • load pressure brake with double ratchet system for safe stable hold of the load in any position
  • cable outlet upwards
  • adjustable crank
  • suitable for wall mounting
  • 1 layer of paint

Spec

Capacity 1st layer

150 kg
Capacity 4th layer

98 kg
Capacity top layer

67 kg
Rope diameter-Ø

4 mm
Rope storage 1st layer

0,7 meter
Rope storage 4th layer

4,9 meter
Rope storage top layer

13,1 meter
Lift per crank rotation

122 mm
Crank effort at full load

10 daN
Weight (without rope)

4 kg





Downloads

Gebuwin by Gebuwin

Gebuwin ATEX Spur Gear Hand Winch 150kg

156-15-30
