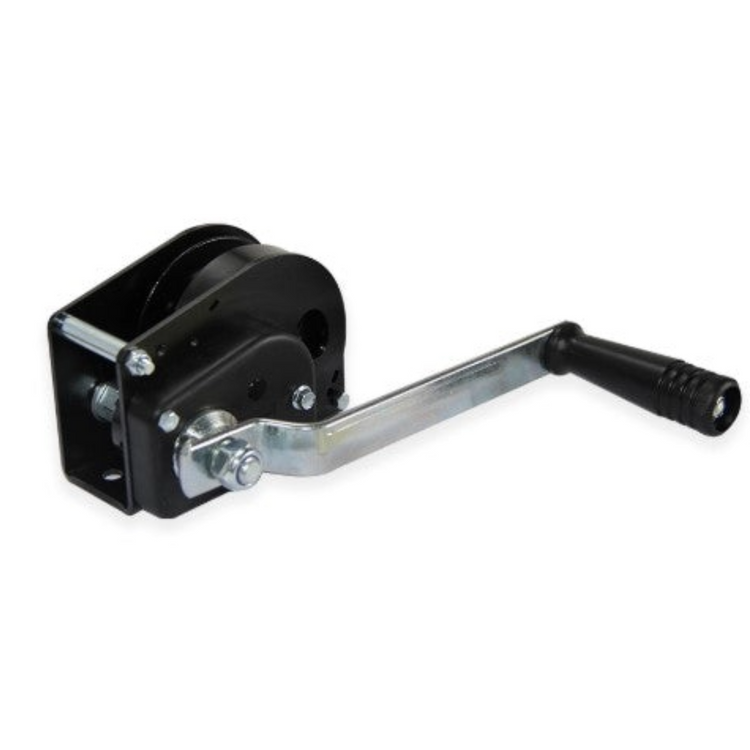

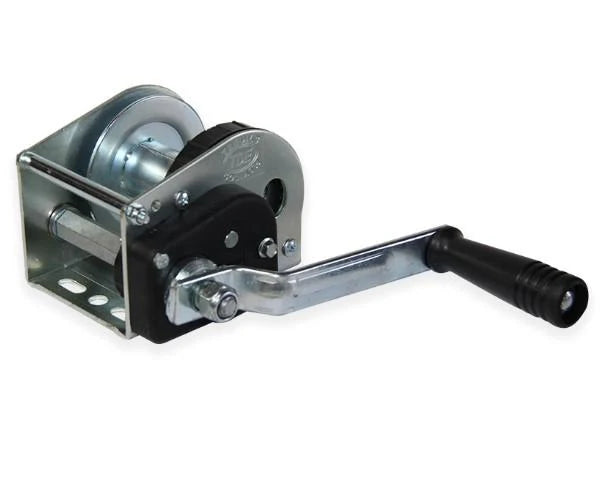

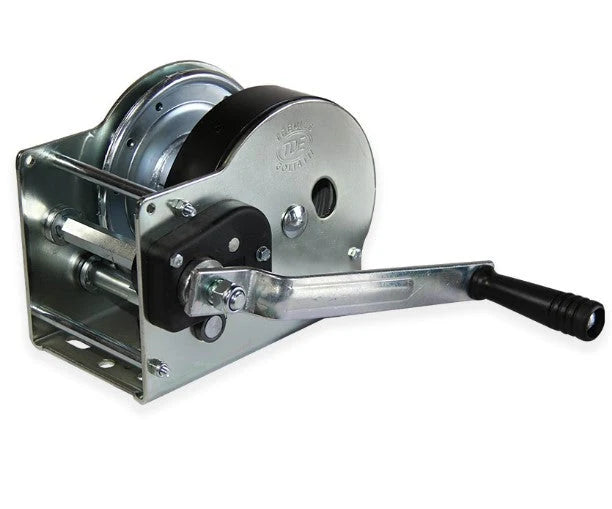

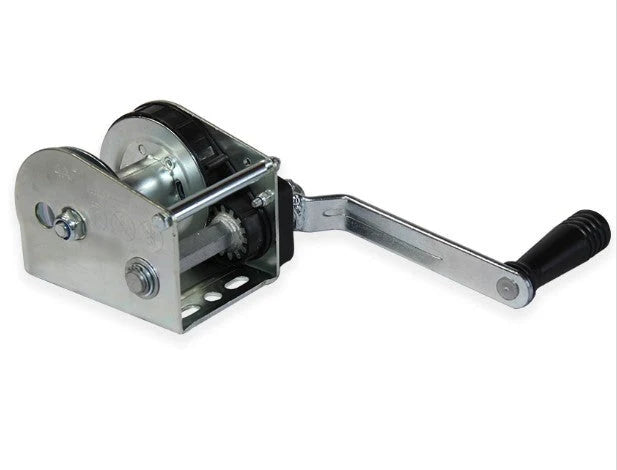

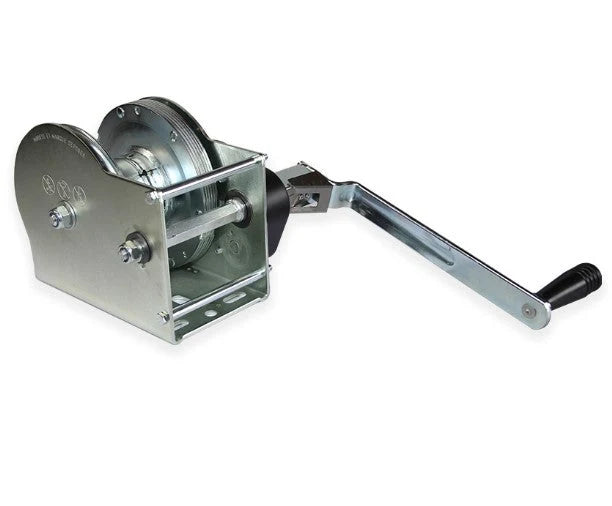

Goliath AFD Zinc Plated Hand Winch

Features

• Self-braking hoist winches for cable: - Lifting up to 1180 kg
• Hauling up to 2500 kg
• Quick cable fixing, cable clamp included.
• Enveloping frame
• Quick cable fixing
• Can be installed as a column or base mounted winch, or can wall mounted when purchased with
• Lightweight
• Inexpensive
• High efficiency through spur gearing
• Smooth running
• All components are
• Automatic load pressure brake holds the load. The load can be held without any action from the handle
• Enclosed and protected stamped gears

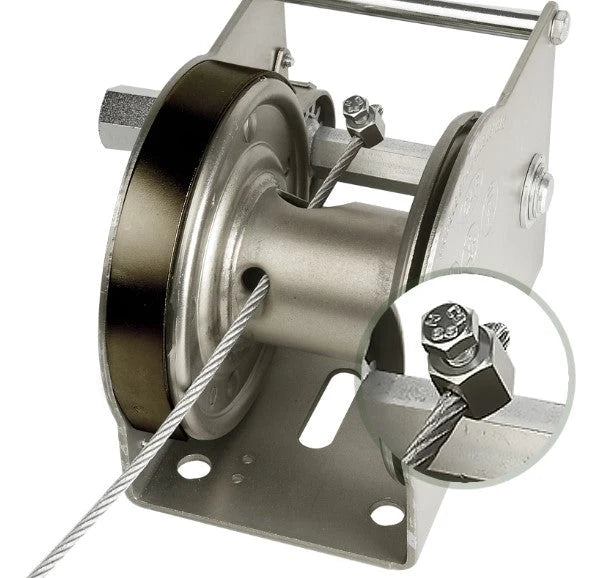

• For use with wire rope, easy cable mounting without drum removal

optional wall mounting plate. zinc plated

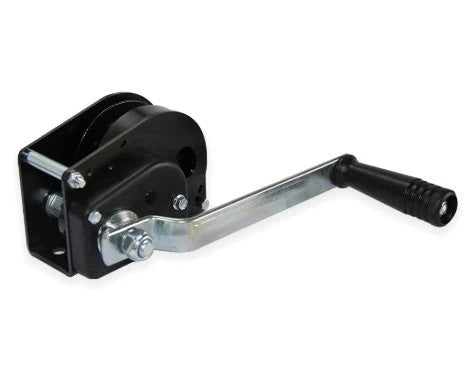

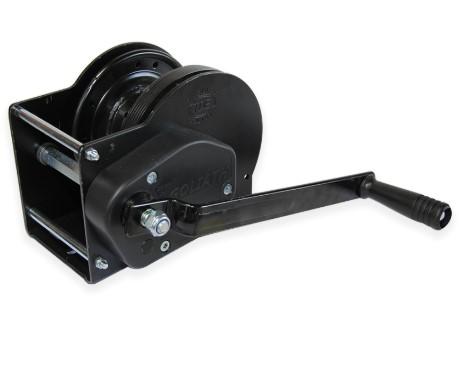

** 4AFMD is supplied in Black finish

Complies with BS EN 13157
CE and TUV Security Accreditation

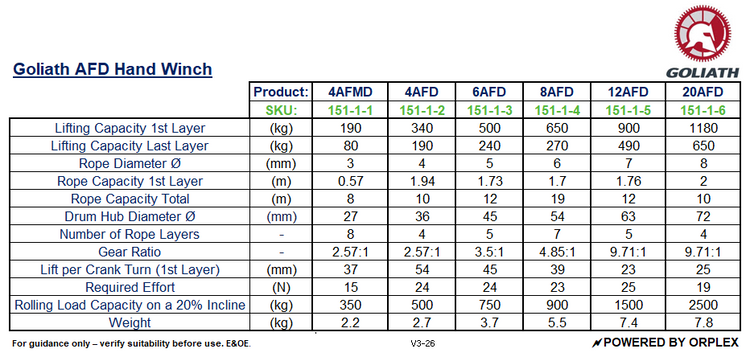

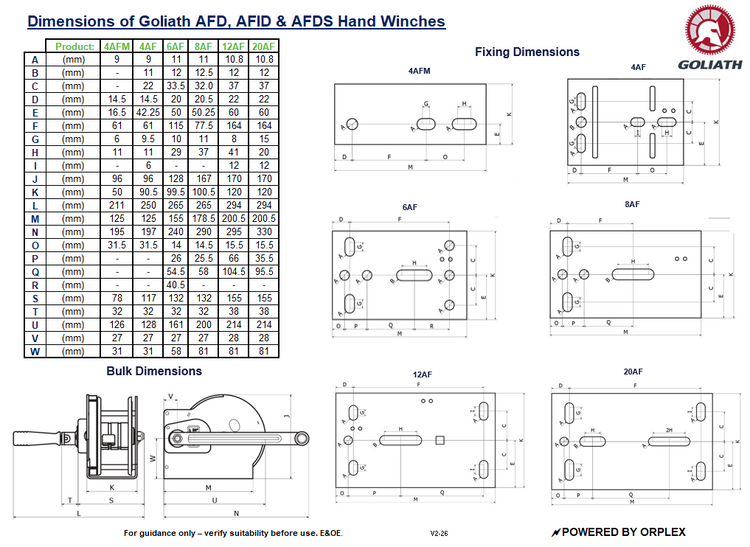

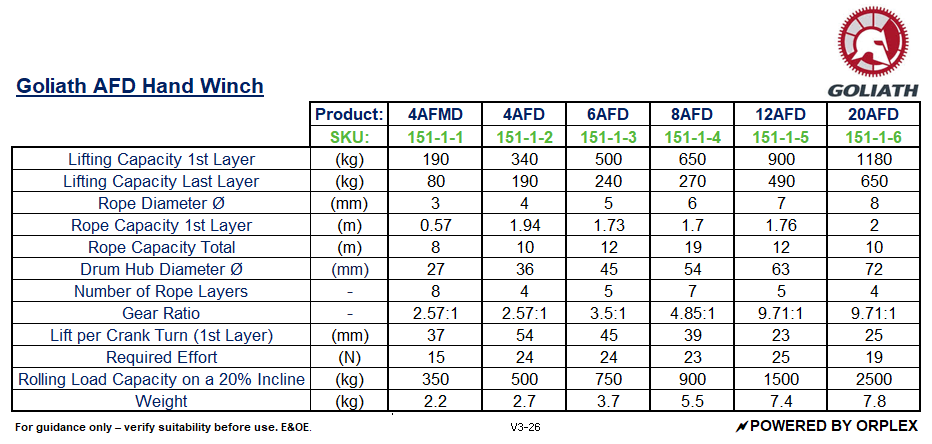

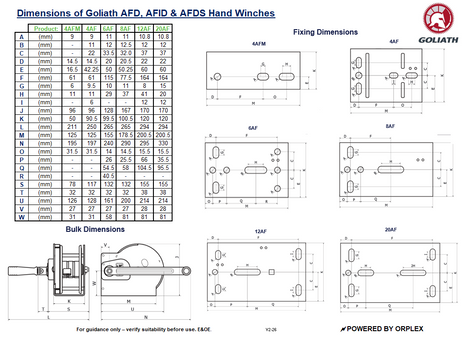

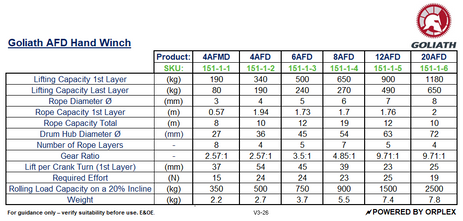

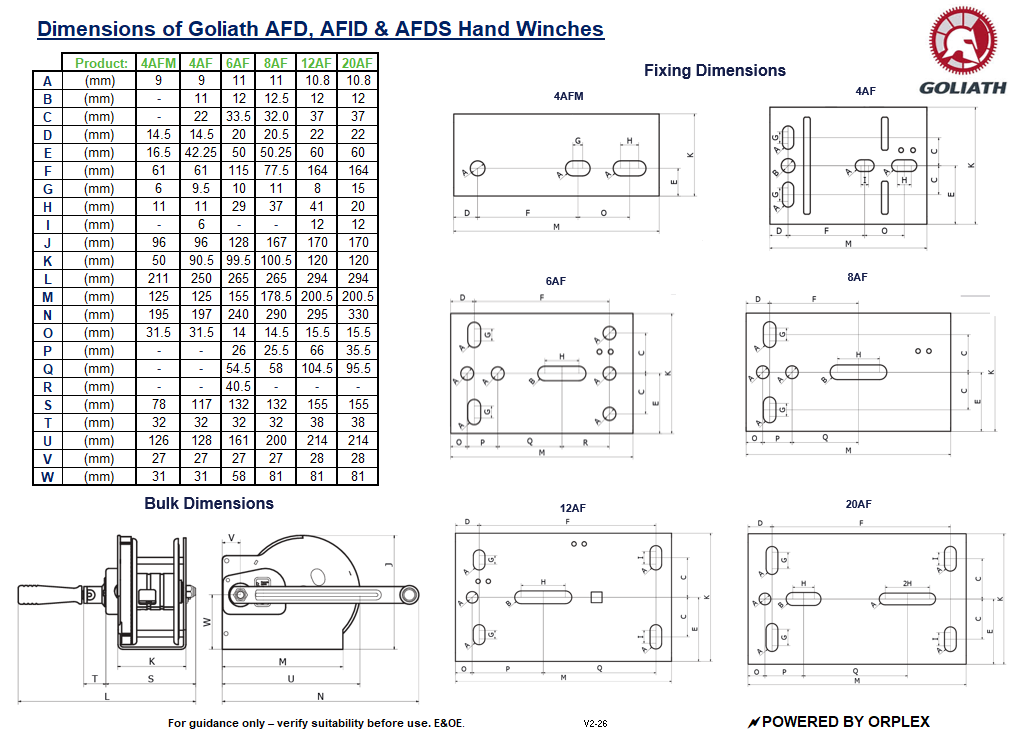

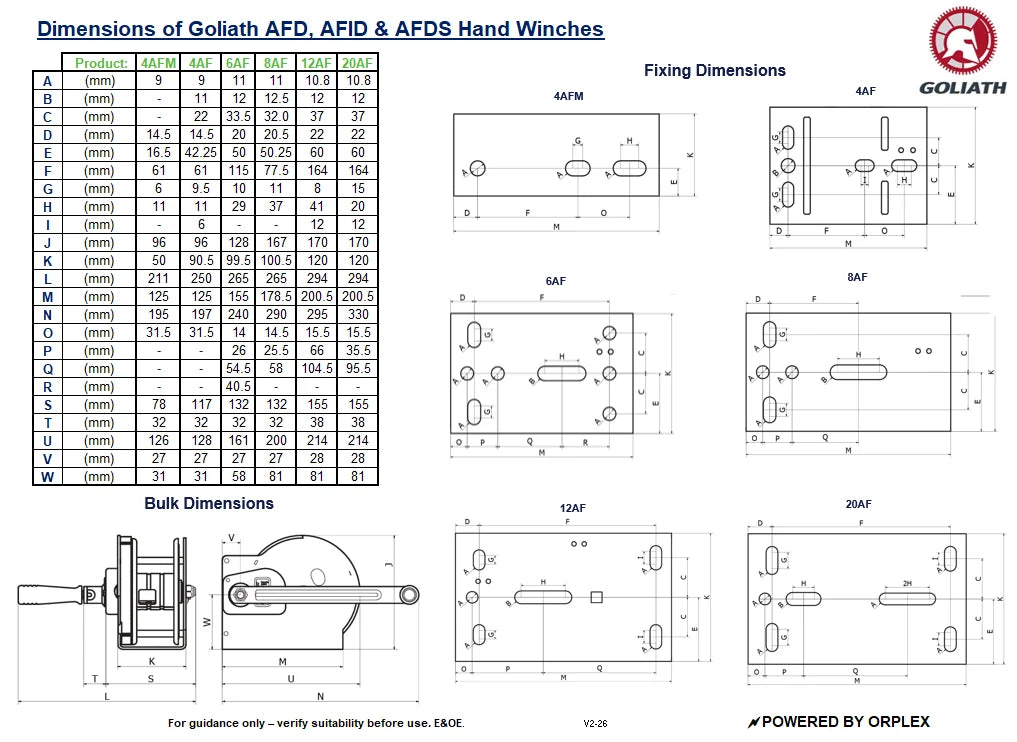

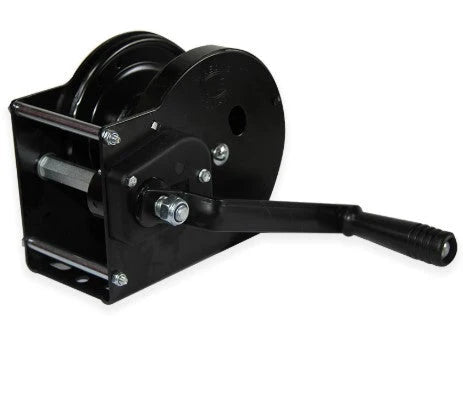

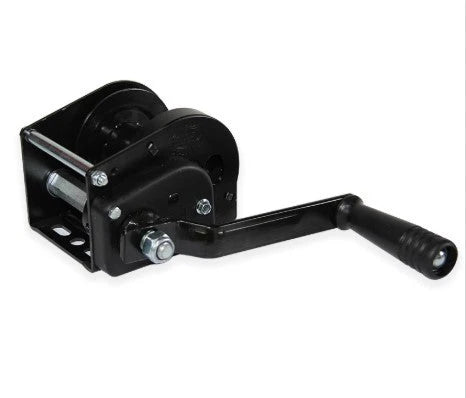

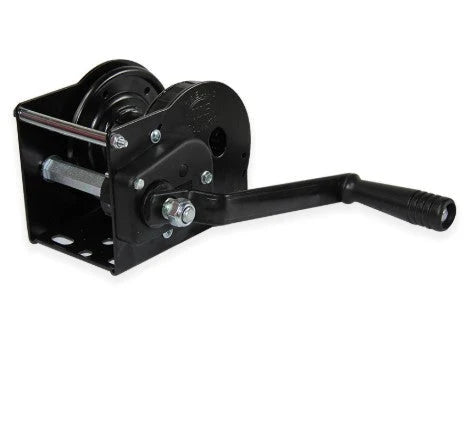

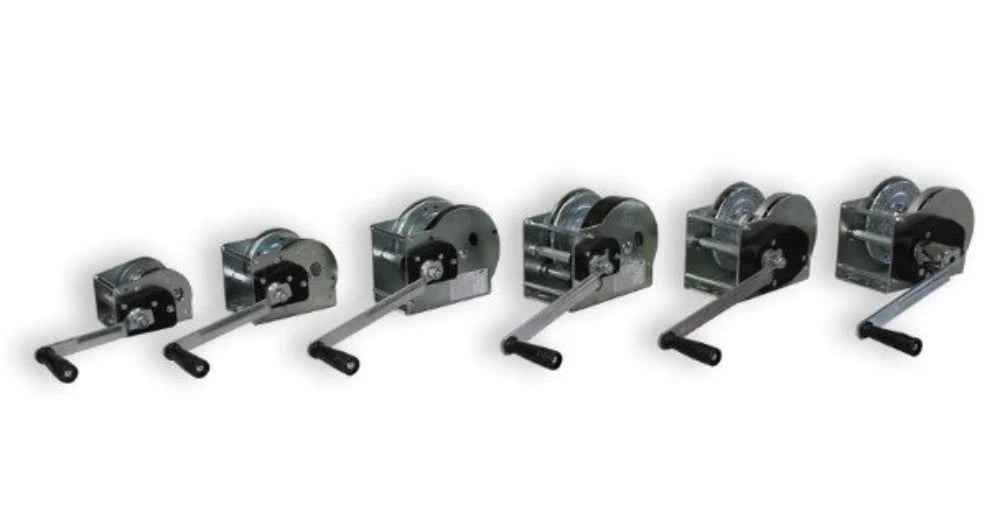

Models available 4AFMD, 4AFD, 6AFD, 8AFD, 12AFD, 20AFD

**As Standard supplied without Wire Rope - Prices available on request**
