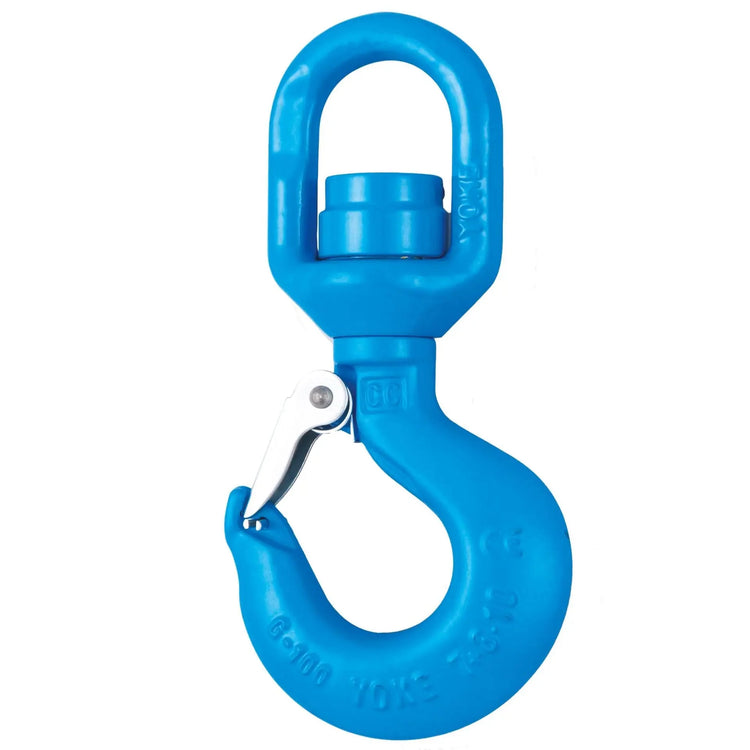

YOKE X-157N Grade 100 Swivel Bearing Hoist Hook

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 2 and ASME B30.26
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch
  • Built with ball bearing and enables full swivel feature under load

Specification

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-67-1 2.5 7, 8 1
276-67-2 4 10 1.6
276-67-3 6.7 13 3.3
276-67-4 10 16 5.6

YOKE X-157N Grade 100 Swivel Bearing Hoist Hook

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 2 and ASME B30.26
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch
  • Built with ball bearing and enables full swivel feature under load

Specification

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-67-1 2.5 7, 8 1
276-67-2 4 10 1.6
276-67-3 6.7 13 3.3
276-67-4 10 16 5.6
YOKE by YOKE

YOKE X-157N Grade 100 Swivel Bearing Hoist Hook

£101.35
£101.35
Tax included. Shipping calculated at checkout.

276-67-1
