Product Information

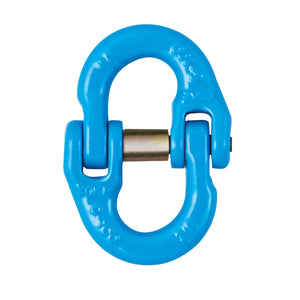

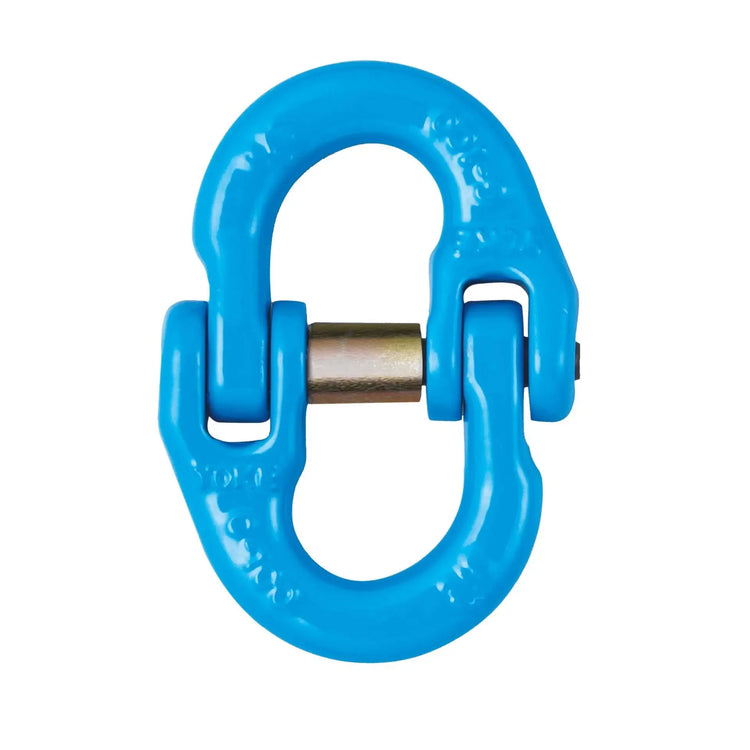

YOKE X-015 Grade 100 Connecting Link

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 1 and ASTM A952/A952M
  • Certified by DGUV GS-OA-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Suitable for use with both Grade 80 and Grade 100 chain

Specification

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-56-1 1.4 6 0.09
276-56-2 2.5 7, 8 0.17
276-56-3 4 10 0.34
276-56-4 6.7 13 0.76
276-56-5 10 16 1.23
276-56-6 16 20 2.2
276-56-7 19 22 3.67
276-56-8 26.5 26 5.17
276-56-9 40 32 9.5

YOKE X-015 Grade 100 Connecting Link

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 1 and ASTM A952/A952M
  • Certified by DGUV GS-OA-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Suitable for use with both Grade 80 and Grade 100 chain

Specification

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-56-1 1.4 6 0.09
276-56-2 2.5 7, 8 0.17
276-56-3 4 10 0.34
276-56-4 6.7 13 0.76
276-56-5 10 16 1.23
276-56-6 16 20 2.2
276-56-7 19 22 3.67
276-56-8 26.5 26 5.17
276-56-9 40 32 9.5
YOKE by YOKE

YOKE X-015 Grade 100 Connecting Link

£10.63
£10.63
Tax included. Shipping calculated at checkout.

276-56-1
