Product Information

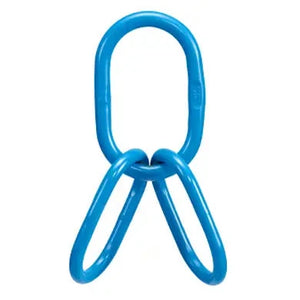

YOKE X-007 Grade 100 Welded Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 5:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature at a minimum of 400°C
- Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings
- Each link is marked with batch number that links to the test certificate with full traceability to raw materials
Specification
| SKU | For Grade 100 Chain (mm) | Capacity (t) | Proof Load (kN) | Weight (kg) |
| 276-55-1 | 7, 8 | 5.3 | 130 | 2.4 |
| 276-55-2 | 10 | 8.9 | 218 | 5.2 |
| 276-55-3 | 10 | 12.9 | 316 | 7.1 |
| 276-55-4 | 13 | 17 | 417 | 10 |
| 276-55-5 | 16 | 23.6 | 578 | 12.2 |
| 276-55-6 | 16 | 28.1 | 688 | 19.2 |
| 276-55-7 | 20 | 38.3 | 938 | 26.5 |
| 276-55-8 | 22 | 45 | 1103 | 33.9 |
YOKE X-007 Grade 100 Welded Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 5:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature at a minimum of 400°C
- Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings
- Each link is marked with batch number that links to the test certificate with full traceability to raw materials
Specification
| SKU | For Grade 100 Chain (mm) | Capacity (t) | Proof Load (kN) | Weight (kg) |
| 276-55-1 | 7, 8 | 5.3 | 130 | 2.4 |
| 276-55-2 | 10 | 8.9 | 218 | 5.2 |
| 276-55-3 | 10 | 12.9 | 316 | 7.1 |
| 276-55-4 | 13 | 17 | 417 | 10 |
| 276-55-5 | 16 | 23.6 | 578 | 12.2 |
| 276-55-6 | 16 | 28.1 | 688 | 19.2 |
| 276-55-7 | 20 | 38.3 | 938 | 26.5 |
| 276-55-8 | 22 | 45 | 1103 | 33.9 |
