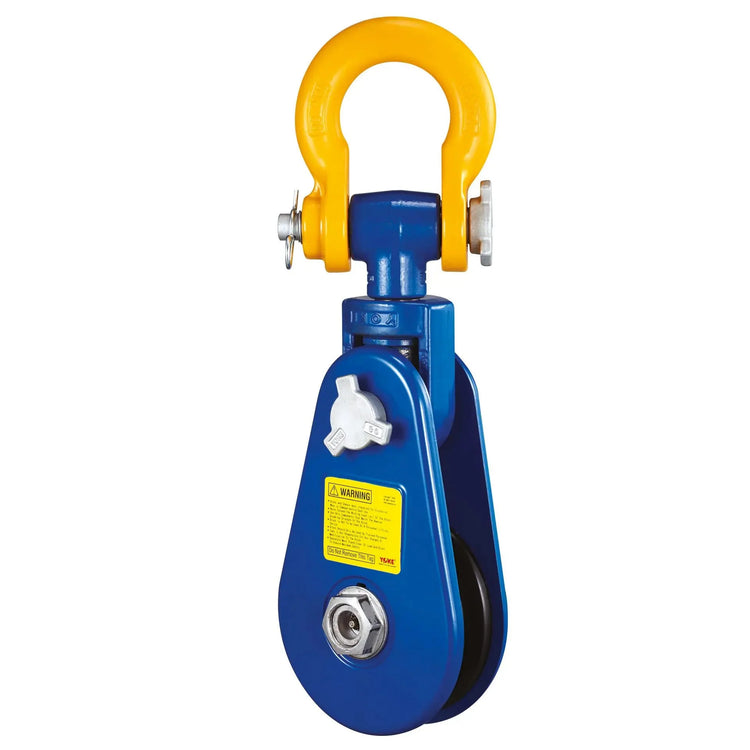

YOKE Forged Snatch Block with Shackle

  • YOKE Forged Snatch Blocks are manufactured of the highest quality forged alloy steel
  • Available from 12 tonnes to 15 tonnes, for wire rope sizes 19mm to 22mm
  • Part number, wire rope size and working load limit are marked on each block
  • Permanent batch codes link to test certificates for easy traceability
  • Supplied with bronze bushings and pressure lube fittings
  • Meets or exceeds all requirements of ASME B30.26
  • Safety factor 4:1
  • Fatigue rated

Specification

SKU Capacity (t) Sheave Diameter (mm) Wire Rope Size (mm) Weight (kg)
276-69-1 12 152 19-22 24
276-69-2 15 203 19-22 28
276-69-3 15 254 19-22 41

YOKE Forged Snatch Block with Shackle

  • YOKE Forged Snatch Blocks are manufactured of the highest quality forged alloy steel
  • Available from 12 tonnes to 15 tonnes, for wire rope sizes 19mm to 22mm
  • Part number, wire rope size and working load limit are marked on each block
  • Permanent batch codes link to test certificates for easy traceability
  • Supplied with bronze bushings and pressure lube fittings
  • Meets or exceeds all requirements of ASME B30.26
  • Safety factor 4:1
  • Fatigue rated

Specification

SKU Capacity (t) Sheave Diameter (mm) Wire Rope Size (mm) Weight (kg)
276-69-1 12 152 19-22 24
276-69-2 15 203 19-22 28
276-69-3 15 254 19-22 41
YOKE by YOKE

YOKE Forged Snatch Block with Shackle

£1,038.24
£1,038.24
Tax included. Shipping calculated at checkout.

276-69-1
