Product Information

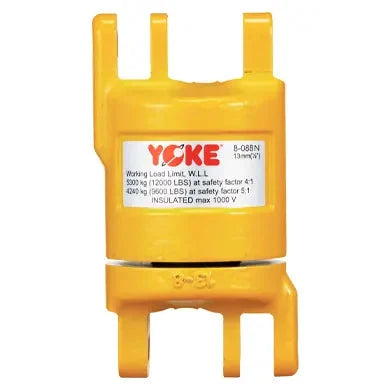

YOKE 8-088N G80 Insulated Blank Swivel

  • Design factor 4:1 proof tested and certified
  • With ball bearing
  • Individually tested to resist 1000 Volts insulated with Test Certificate
  • Designed for the protection of overhead cranes during welding operations on suspended loads

Part of the Yoke Grade 80 Lifting Chain Fittings Range

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

Specification

SKU Capacity (t) For Grade 80 Chain (mm) Weight (kg)
276-11-1 2 7, 8 0.7
276-11-2 3.15 10 1.3
276-11-3 5.3 13 2.7
276-11-4 8 16 4.7
276-11-5 12.5 18, 20 7

YOKE 8-088N G80 Insulated Blank Swivel

  • Design factor 4:1 proof tested and certified
  • With ball bearing
  • Individually tested to resist 1000 Volts insulated with Test Certificate
  • Designed for the protection of overhead cranes during welding operations on suspended loads

Part of the Yoke Grade 80 Lifting Chain Fittings Range

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

Specification

SKU Capacity (t) For Grade 80 Chain (mm) Weight (kg)
276-11-1 2 7, 8 0.7
276-11-2 3.15 10 1.3
276-11-3 5.3 13 2.7
276-11-4 8 16 4.7
276-11-5 12.5 18, 20 7
YOKE by YOKE

YOKE 8-088N G80 Insulated Blank Swivel

Regular price
£348.00
Sale price
£348.00
Regular price
Tax included. Shipping calculated at checkout.

Translation missing: en.products.product.sku:276-11-1
