Product Information

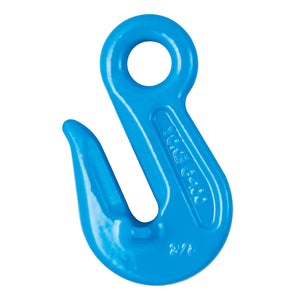

YOKE Grade 100 Eye Grab Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with DIN 5692, EN 1677-1 and ASTM A952/A 952M
- Certified by DGUV GS-MO-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Not for use with Omega Link
- Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation
Spec
| SKU | Capacity (t) | For Grade 100 Chain (mm) | Weight (kg) |
| 276-59-1 | 1.4 | 6 | 0.2 |
| 276-59-2 | 2.5 | 7, 8 | 0.3 |
| 276-59-3 | 4 | 10 | 0.6 |
| 276-59-4 | 6.7 | 13 | 1.4 |
| 276-59-5 | 10 | 16 | 2.4 |
| 276-59-6 | 16 | 20 | 4 |
| 276-59-7 | 19 | 22 | 5 |
| 276-59-8 | 26.5 | 26 | 10 |
| 276-59-9 | 40 | 32 | 24 |
Downloads
