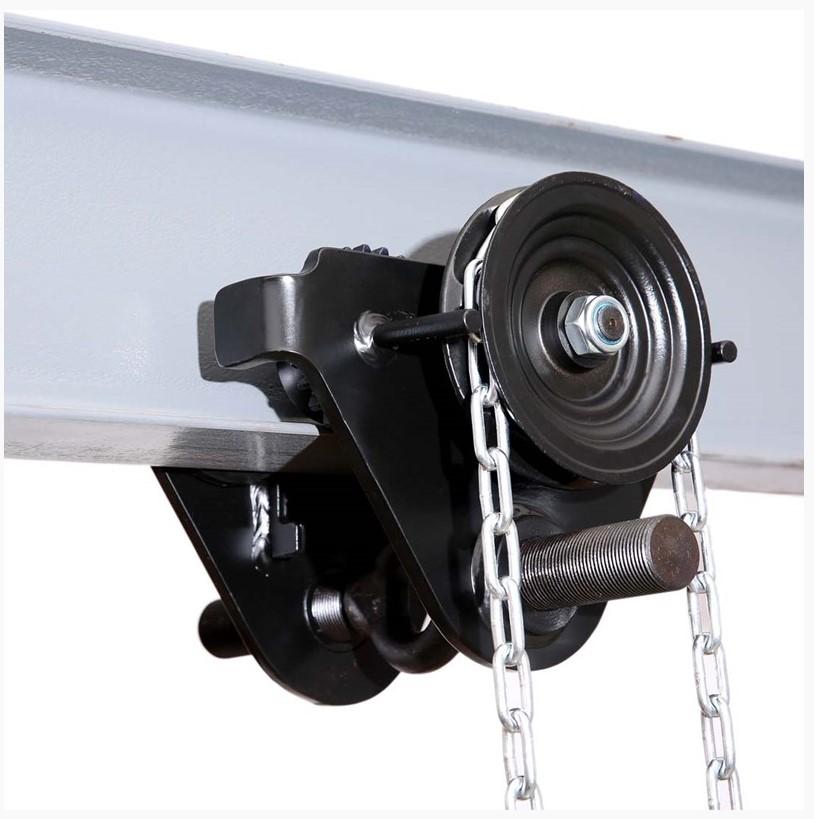

Tiger SGT Screw Bar Geared Trolley Ref: 245-1

    • Range from 0.5t to 5.0t
    • The wheels run on sealed bearings for smoother rolling with less effort and maintenance
    • Geared type with hand chain length to suit your requirements
    • The 4:1 factor of safety allows for use with manual or powered hoists
    • The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
PRODUCT CODE CAPACITY (TONNE) D - TRACK WIDTH DIMENSIONS (MM) MIN. CURVE RATIO (M) NET WEIGHT (KG) TECHNICAL DRAWING
RANGE 1 (MM) RANGE 2 (MM) A B C E F G H J K
SGT-0050 0.5 50-220 300 210 190 33 3 25 TBA 9.0
SGT-0100 1.0 64-220 300 260 211 31 3 30 1.0 13.0
SGT-0200 2.0 88-220 310 310 236 32 3 40 1.1 20.5
SGT-0300 3.0 102-220 320 390 295 46 3 48 1.3 30.0
SGT-0500 5.0 114-220 330 450 334 47 3 60 1.4 45.0


    Tiger SGT Screw Bar Geared Trolley Ref: 245-1

      • Range from 0.5t to 5.0t
      • The wheels run on sealed bearings for smoother rolling with less effort and maintenance
      • Geared type with hand chain length to suit your requirements
      • The 4:1 factor of safety allows for use with manual or powered hoists
      • The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
    PRODUCT CODE CAPACITY (TONNE) D - TRACK WIDTH DIMENSIONS (MM) MIN. CURVE RATIO (M) NET WEIGHT (KG) TECHNICAL DRAWING
    RANGE 1 (MM) RANGE 2 (MM) A B C E F G H J K
    SGT-0050 0.5 50-220 300 210 190 33 3 25 TBA 9.0
    SGT-0100 1.0 64-220 300 260 211 31 3 30 1.0 13.0
    SGT-0200 2.0 88-220 310 310 236 32 3 40 1.1 20.5
    SGT-0300 3.0 102-220 320 390 295 46 3 48 1.3 30.0
    SGT-0500 5.0 114-220 330 450 334 47 3 60 1.4 45.0


      Tiger Products by Tiger Products

      Tiger SGT Screw Bar Geared Trolley

      £93.00
      £93.00
      Tax included. Shipping calculated at checkout.

      245-1-1
