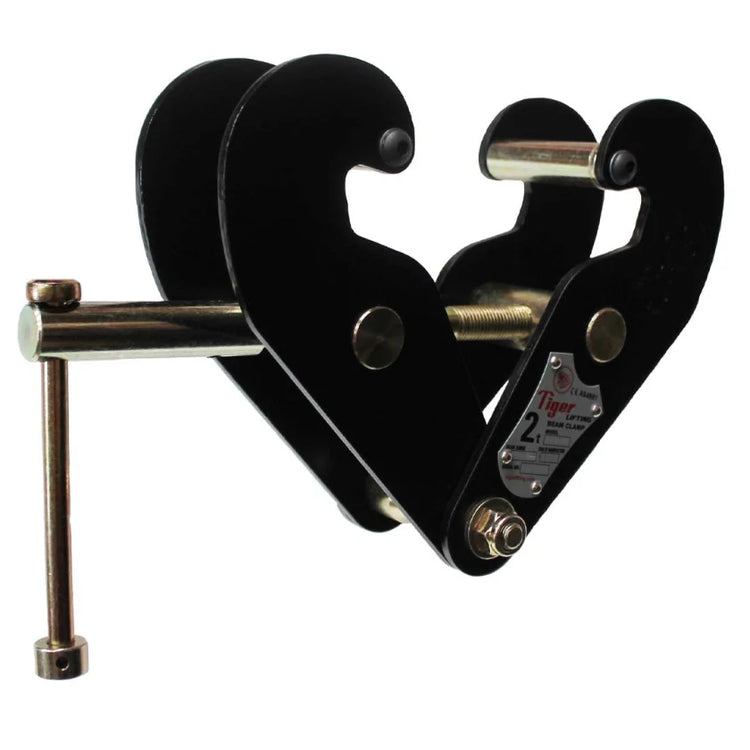

Tiger Type BC Beam Clamp with Suspension Bar

Tiger Beam Clamp with Suspension Bar.

Features

• Range from 1.0t to 10.0t
• Quick and versatile rigging point for hoisting equipment
• Low headroom because of the built in anchor point
• Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
• Wide Beam flange adjustment range
• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
• 5:1 factor of safety – for straight pulling and lifting
• Optional locking device

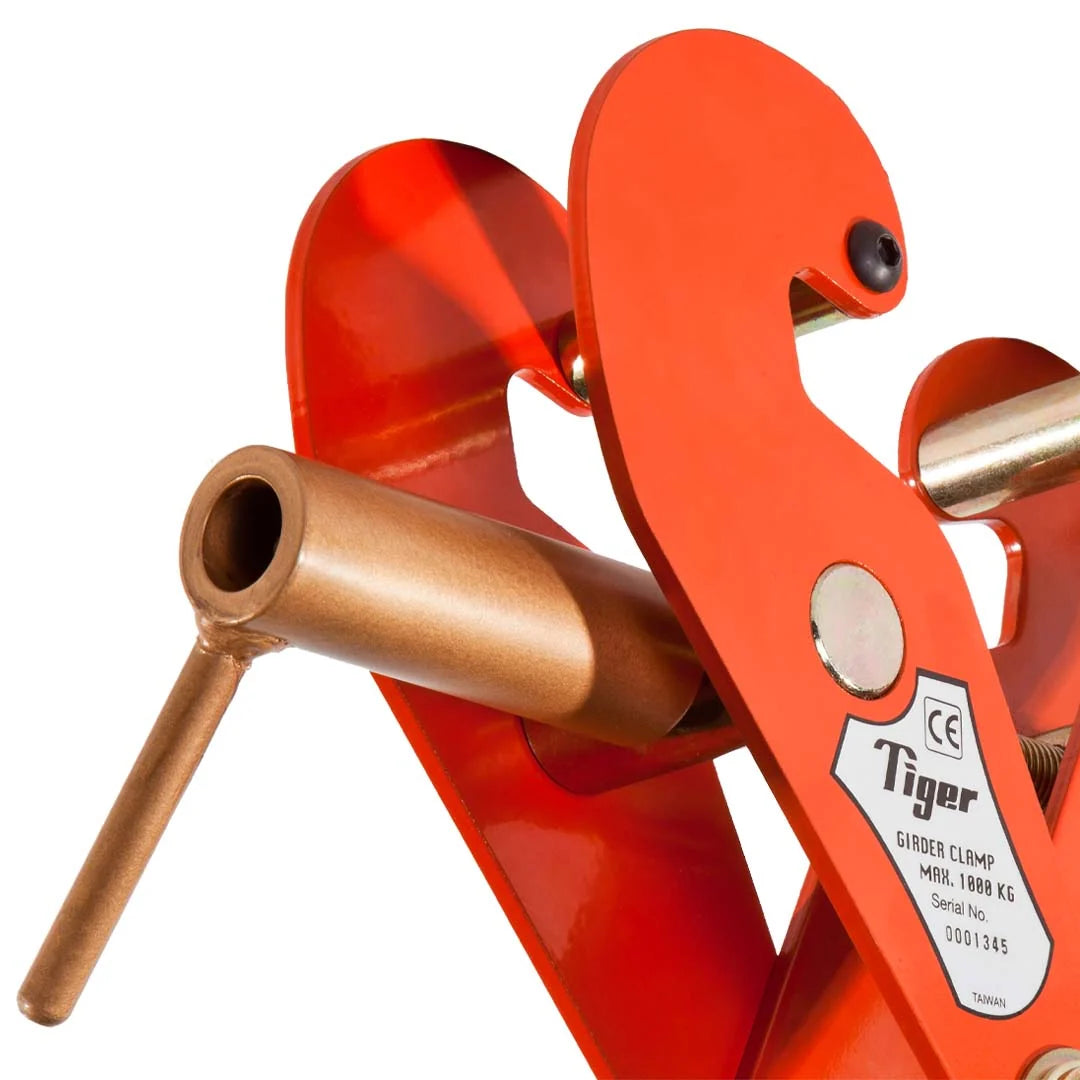

• Please note the colour of the stock has changed from orange to black

These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
