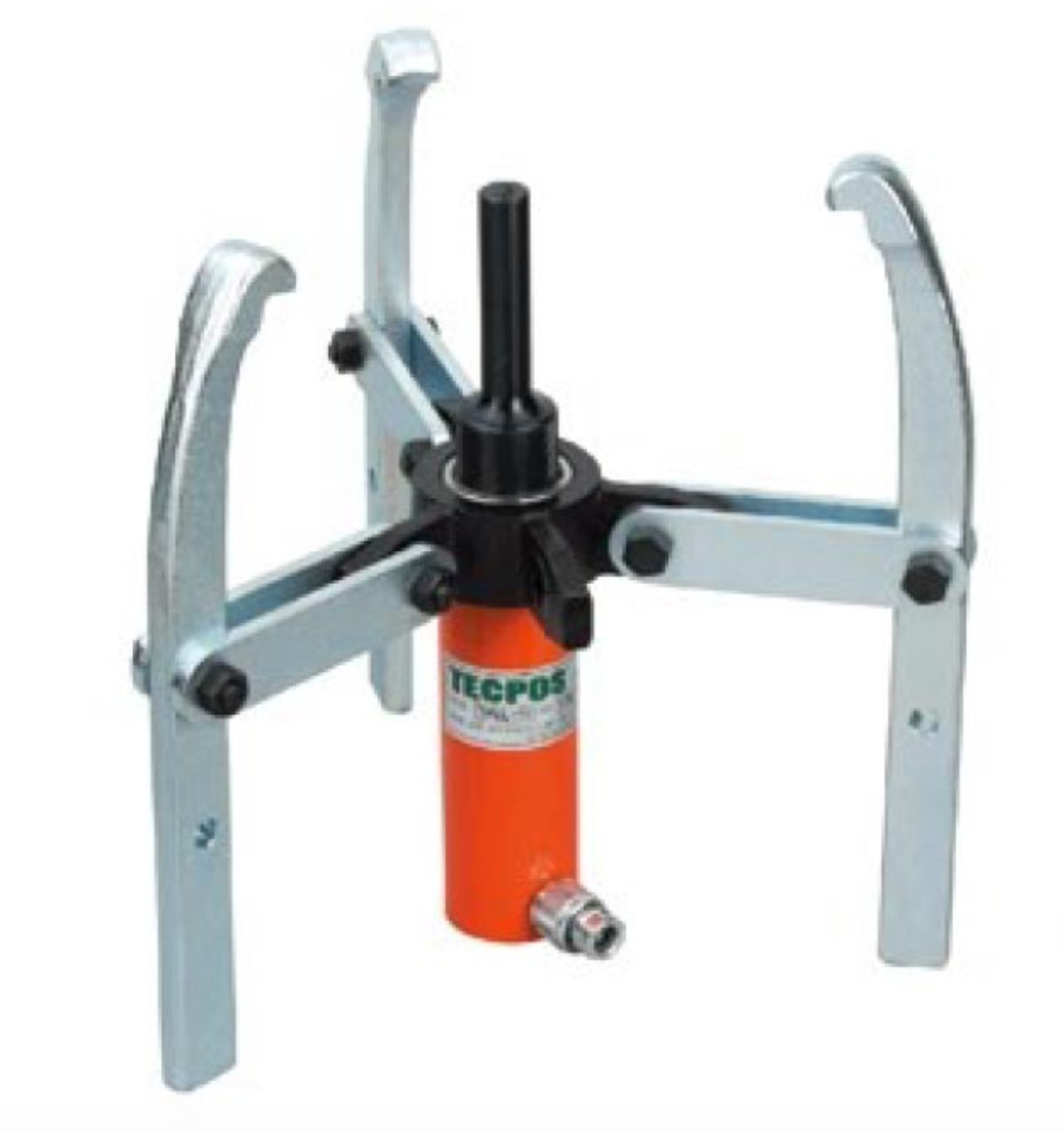

Tecpos Hydraulic Puller - TPUL Series
  • Capacity: 10-50 tonnes.
  • Maximum Pressure: 700-2000 Bar.
  • Hydraulic Coupler: TBC 381F (PT3/8).
  • Certification available



      Spec

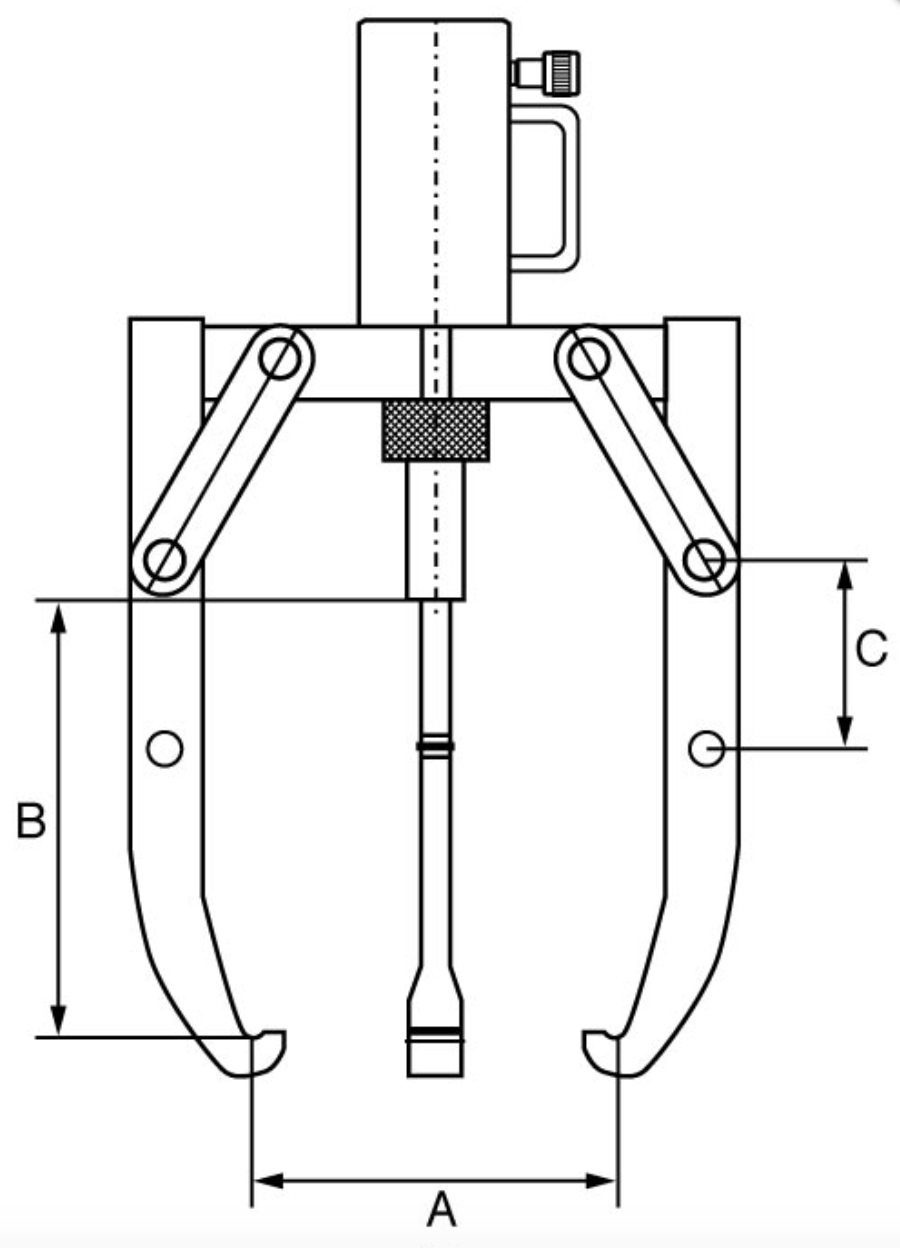

      SKU Cylinder Capacity Stroke A B C Weight Pump
      t mm mm mm mm kgs To Suit
      286-707-1 10 150 180 240 75 13.5 1B
      286-707-2 20 150 280 400 130 36.8 1B
      286-707-3 30 150 280 420 130 46.7 1C
      286-707-4 50 150 360 520 150 85.3 1C



      Downloads

      Tecpos Hydraulic Puller - TPUL Series
      • Capacity: 10-50 tonnes.
      • Maximum Pressure: 700-2000 Bar.
      • Hydraulic Coupler: TBC 381F (PT3/8).
      • Certification available



          Spec

          SKU Cylinder Capacity Stroke A B C Weight Pump
          t mm mm mm mm kgs To Suit
          286-707-1 10 150 180 240 75 13.5 1B
          286-707-2 20 150 280 400 130 36.8 1B
          286-707-3 30 150 280 420 130 46.7 1C
          286-707-4 50 150 360 520 150 85.3 1C



          Downloads
