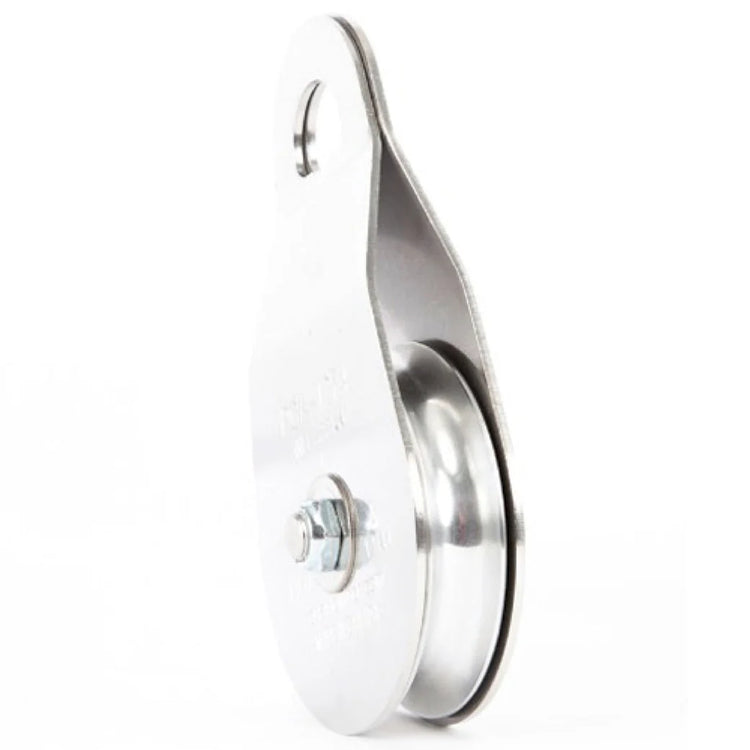

Stainless Steel Single Swing Side Pulley Sheave 100mm

This stainless steel swing side snatch block features a lightweight 100 mm diameter deep groove aluminium sheave, with stainless steel plates that swing open to install rope.

Sintered bronze bushing on stainless steel shaft provides 98% efficiency.

It is useful to deviate the winching direction or for doubling the pulling force when the load is in place.

Use the steel locking carabiners to anchor to a polyester sling.

Ideal rope diameter: 12 mm.

Manufactured in Canada

Specification

• Minimum Breaking Load (metric) : 90 kN (9185 kg)
• Working Load Limit (metric) : N/A
• Material : Sides: Stainless steel. Sheave: Aluminum

Weight and Dimensions

• Weight (metric) : 1,24 kg
• Diameter (metric) : 100 mm
• Length (metric) : 27 cm
• Width (metric) : 14 cm
• Height (metric) : 14 cm

Rope Specification

• Minimum diameter (metric) : 6 mm
• Maximum diameter (metric) : 12 mm

Additional Information

• Not designed for steel cable.
• The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared.

The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition.

The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.
