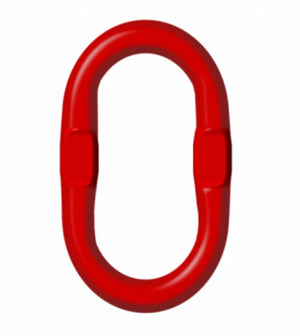

Recessed Link
- High tensile steel, quenched and tempered.
- Red painted finish.
- Certification available
Spec
| SKU |
Part No. | W.L.L. | P.L. | M.B.L. | Dia | A | B | Weight |
|---|---|---|---|---|---|---|---|---|
| t | t | t | mm | mm | mm | kgs | ||
| 286-1112-X |
S0521 | 1 | 2 | 5 | 12 | 70 | 30 | 0.2 |
| 286-1112-X |
S0522 | 1.5 | 3 | 7.5 | 15 | 85 | 35 | 0.4 |
| 286-1112-X |
S0523 | 3 | 6 | 15 | 20 | 102 | 38 | 0.8 |
| 286-1112-X |
S0524 | 3.2 | 6.4 | 16 | 20 | 110 | 45 | 0.9 |
| 286-1112-1 |
S0525 | 10 | 20 | 50 | 21.5 | 101 | 37.5 | 1.3 |
| 286-1112-2 |
S0526 | 12 | 24 | 60 | 25 | 122 | 48 | 1.7 |
| 286-1112-X |
S0527 | 15 | 30 | 75 | 30 | 170 | 75 | 2.8 |
| 286-1112-X |
S0528 | 20 | 40 | 100 | 34 | 185 | 85 | 4.2 |
Downloads
