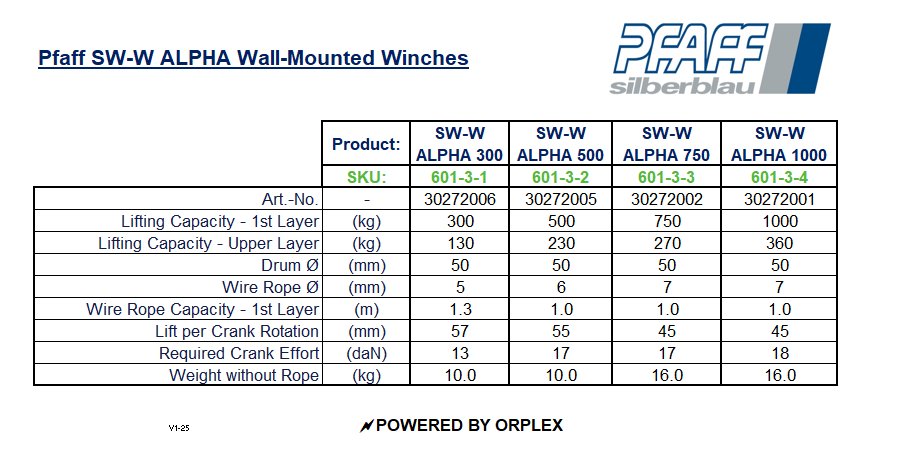

Pfaff SW-W ALPHA Wall-Mounted Winch Specification Table

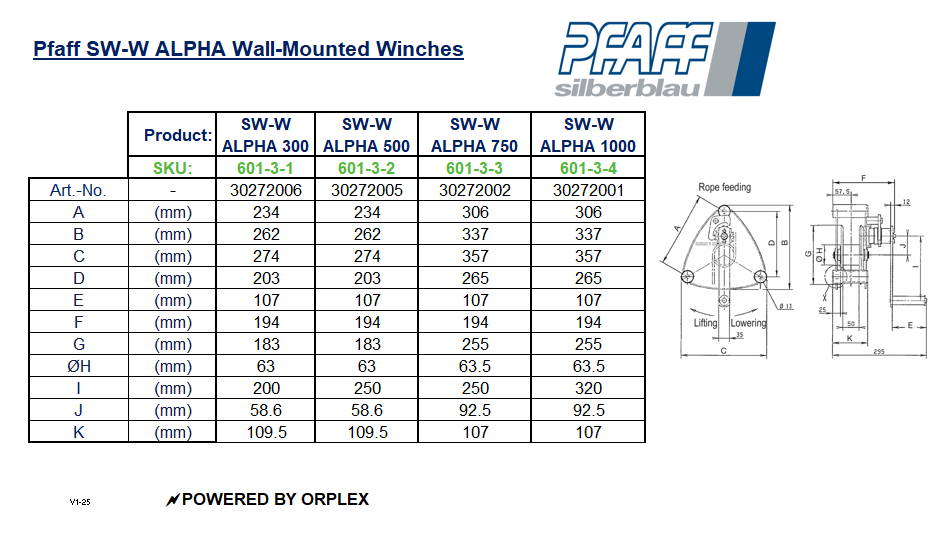

Pfaff SW-W ALPHA Wall-Mounted Winch Dimensions Table with Diagrams
    Pfaff SW-W ALPHA Wall-Mounted Winch
    Pfaff SW-W ALPHA Wall-Mounted Winch Specification Table
    Pfaff SW-W ALPHA Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W ALPHA Wall-Mounted Winch
Pfaff SW-W ALPHA Wall-Mounted Winch Specification Table
Pfaff SW-W ALPHA Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W ALPHA Wall-Mounted Winch
Pfaff SW-W ALPHA Wall-Mounted Winch Specification Table
Pfaff SW-W ALPHA Wall-Mounted Winch Dimensions Table with Diagrams
    Pfaff SW-W ALPHA Wall-Mounted Winch
    Pfaff SW-W ALPHA Wall-Mounted Winch Specification Table
    Pfaff SW-W ALPHA Wall-Mounted Winch Dimensions Table with Diagrams
Pfaff SW-W ALPHA Wall-Mounted Winch
Pfaff SW-W ALPHA Wall-Mounted Winch Specification Table
Pfaff SW-W ALPHA Wall-Mounted Winch Dimensions Table with Diagrams

Product Information

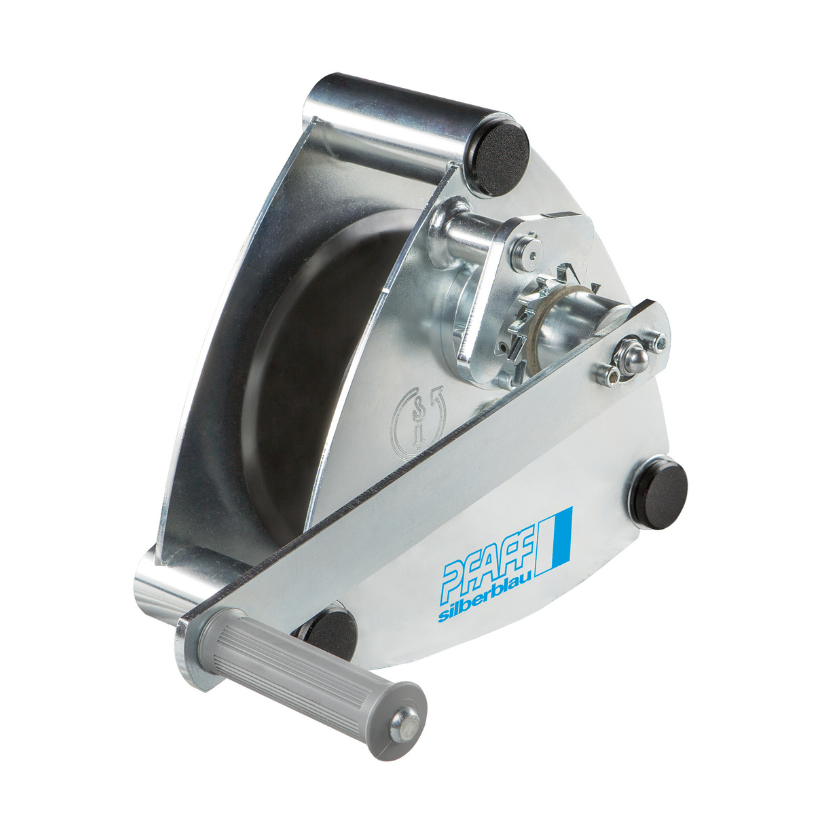

Pfaff SW-W ALPHA 750 Wall-Mounted Winch - 750kg Capacity

A versatile wall-mounted winch for an easy lifting of loads. This model supports loads up to 750kg.

Features and benefits include:

  • Light weight robust stamped steel housing and compact design.
  • Spur gear drive for optimal efficiency and comfortable handling.
  • Rope lead-offs to all directions.
  • All parts are zinc-plated for increased corrosion protection, drum with additional special coating.
  • Integrated crank with load pressure brake for safe holding of the load.
  • Easy and quick mounting onto walls.
  • Wire rope sold separately.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff SW-W ALPHA 750 Wall-Mounted Winch - 750kg Capacity

A versatile wall-mounted winch for an easy lifting of loads. This model supports loads up to 750kg.

Features and benefits include:

  • Light weight robust stamped steel housing and compact design.
  • Spur gear drive for optimal efficiency and comfortable handling.
  • Rope lead-offs to all directions.
  • All parts are zinc-plated for increased corrosion protection, drum with additional special coating.
  • Integrated crank with load pressure brake for safe holding of the load.
  • Easy and quick mounting onto walls.
  • Wire rope sold separately.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff-silberblau by Pfaff-silberblau

Pfaff SW-W ALPHA 750KG Wall-Mounted Winch

£780.10
£780.10
Tax included. Shipping calculated at checkout.

601-3-3
