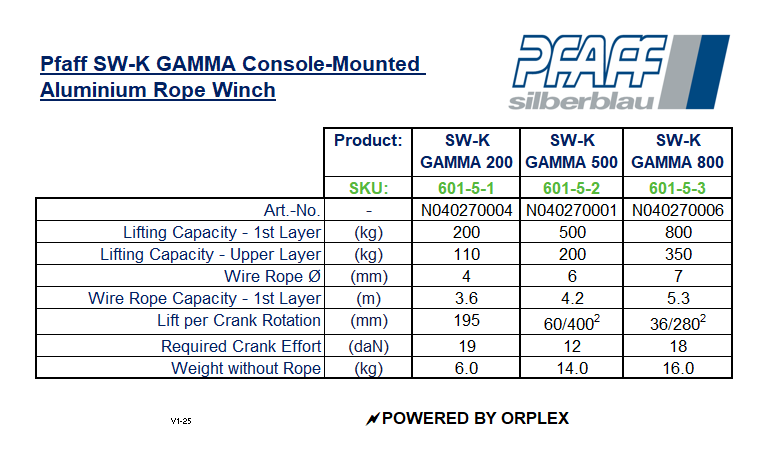

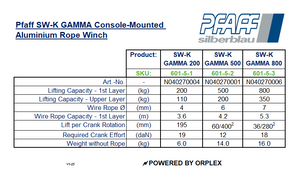

Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Specification Table

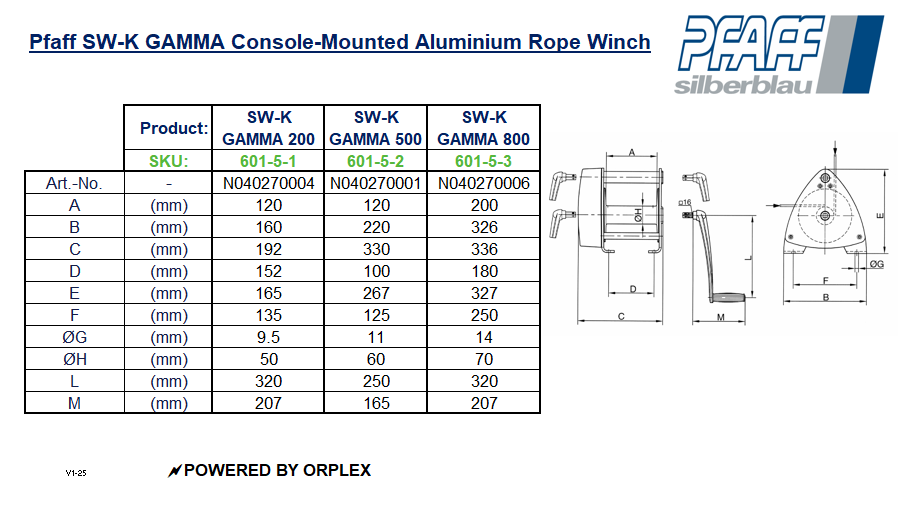

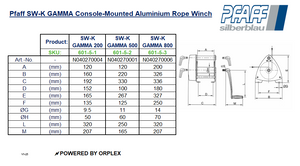

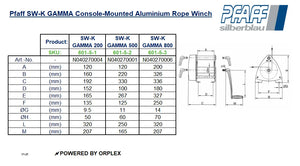

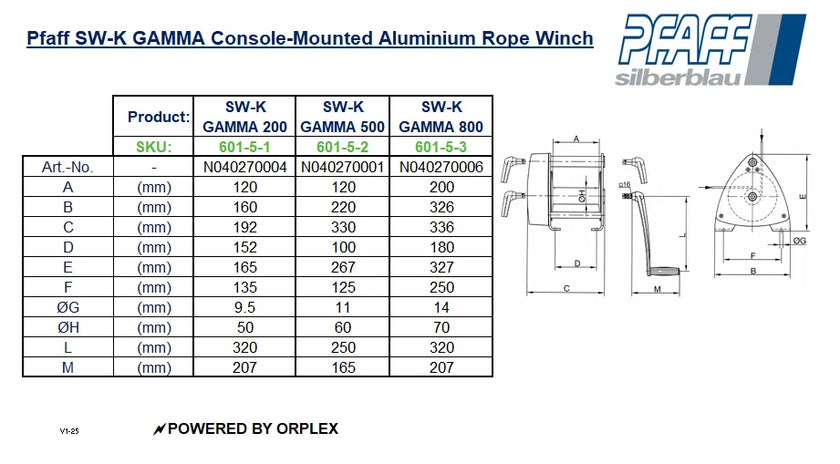

Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Dimensions Table with Diagrams
    Pfaff SW-K GAMMA 200KG Console-Mounted Aluminium Rope Winch
    Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Specification Table
    Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Dimensions Table with Diagrams
Pfaff SW-K GAMMA 200KG Console-Mounted Aluminium Rope Winch
Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Specification Table
Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Dimensions Table with Diagrams
Pfaff SW-K GAMMA 200KG Console-Mounted Aluminium Rope Winch
Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Specification Table
Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Dimensions Table with Diagrams
    Pfaff SW-K GAMMA 200KG Console-Mounted Aluminium Rope Winch
    Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Specification Table
    Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Dimensions Table with Diagrams
Pfaff SW-K GAMMA 200KG Console-Mounted Aluminium Rope Winch
Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Specification Table
Pfaff SW-K GAMMA Console-Mounted Aluminium Rope Winch Dimensions Table with Diagrams

Product Information

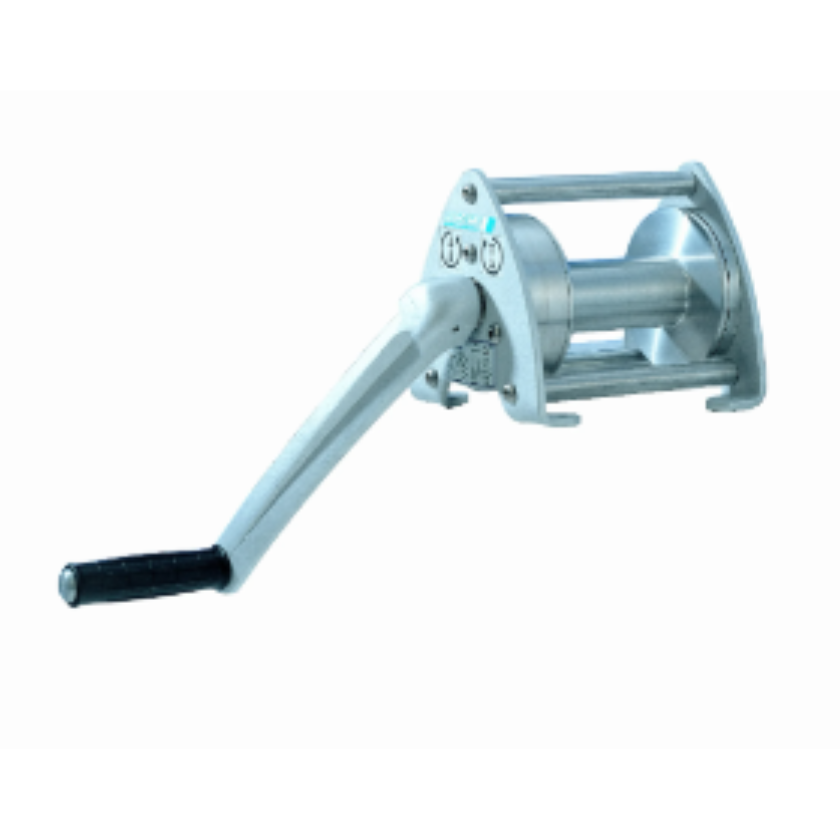

Pfaff SW-K GAMMA 200 Console-Mounted Aluminium Rope Winch - 200kg Capacity

Due to its rugged design, the aluminium rope winch is suitable for operation outdoors

Features and benefits include:

  • Compact aluminium housing and enclosed sprocket wheel drive. From a capacity of 500 kg with speed increasing ratio for small loads and quicker winding and unwinding of the unloaded rope.
  • Spur gear drive for optimal efficiency and comfortable handling.
  • Enclosed gear for the protection of parts inside, also for arduous applications.
  • Low-friction shaft sliding bearings for improved rope lead-off and a longer service life of the winch.
  • Wide rope drum for a large rope capacity with two rope attachment points.
  • Easy and quick mounting.
  • With integrated safety spring brake system and removable crank. The winches can be operated from either side.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff SW-K GAMMA 200 Console-Mounted Aluminium Rope Winch - 200kg Capacity

Due to its rugged design, the aluminium rope winch is suitable for operation outdoors

Features and benefits include:

  • Compact aluminium housing and enclosed sprocket wheel drive. From a capacity of 500 kg with speed increasing ratio for small loads and quicker winding and unwinding of the unloaded rope.
  • Spur gear drive for optimal efficiency and comfortable handling.
  • Enclosed gear for the protection of parts inside, also for arduous applications.
  • Low-friction shaft sliding bearings for improved rope lead-off and a longer service life of the winch.
  • Wide rope drum for a large rope capacity with two rope attachment points.
  • Easy and quick mounting.
  • With integrated safety spring brake system and removable crank. The winches can be operated from either side.

Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.

UKCA / CE Mark where required and with Certification

Pfaff-silberblau by Pfaff-silberblau

Pfaff SW-K GAMMA 200KG Console-Mounted Aluminium Rope Winch

£789.83
£789.83
Tax included. Shipping calculated at checkout.

601-5-1
