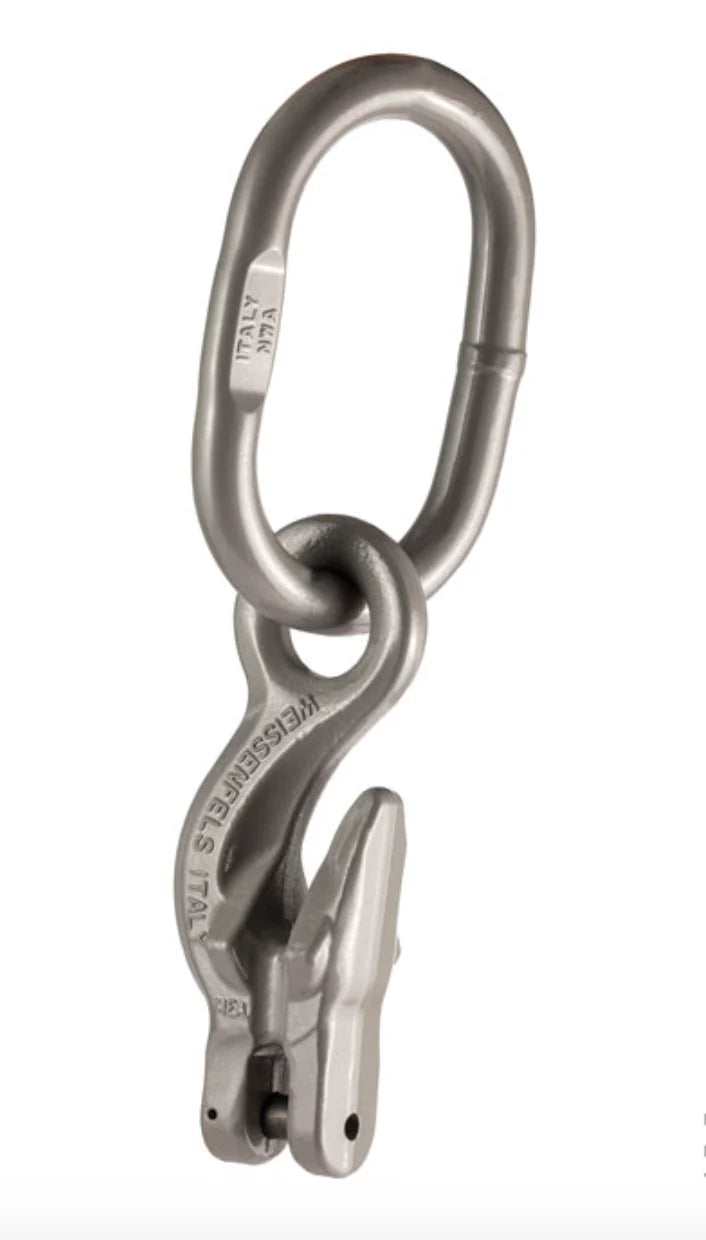

KITO WEISSENFELS Grade 10 Single Leg Master Link – DG1 Series

  • Grade 10 alloy steel, quenched and tempered.
  • Grey painted finish.
  • Meets the performance requirements of BS EN 1677-4 +25% of loads.
  • Suitable for use with grade 10 chains and wire/fibre rope slings.
  • Specially designed for direct clevis connection of hooks to chain.
  • No reduction in W.L.L. of sling when using the shortening hook.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity

Specification

SKU
 Chain Dia 1 leg W.L.L. M.P.F. M.B.F. D L L1 W Weight
mm t kN kN mm mm mm mm kgs
286-215-1
 6 1.4 34.3 54.9 13 110 198 60 0.61
286-215-2
 7/8 2.5 61.3 98 16 110 227 60 1.14
286-215-3
 10 4 98 157 19 135 283 75 2.12
286-215-4
 13 6.7 164 263 23 160 345 90 4.17
286-215-5 16 10 245 392 27 180 412 100 6.98

KITO WEISSENFELS Grade 10 Single Leg Master Link – DG1 Series

  • Grade 10 alloy steel, quenched and tempered.
  • Grey painted finish.
  • Meets the performance requirements of BS EN 1677-4 +25% of loads.
  • Suitable for use with grade 10 chains and wire/fibre rope slings.
  • Specially designed for direct clevis connection of hooks to chain.
  • No reduction in W.L.L. of sling when using the shortening hook.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity

Specification

SKU
 Chain Dia 1 leg W.L.L. M.P.F. M.B.F. D L L1 W Weight
mm t kN kN mm mm mm mm kgs
286-215-1
 6 1.4 34.3 54.9 13 110 198 60 0.61
286-215-2
 7/8 2.5 61.3 98 16 110 227 60 1.14
286-215-3
 10 4 98 157 19 135 283 75 2.12
286-215-4
 13 6.7 164 263 23 160 345 90 4.17
286-215-5 16 10 245 392 27 180 412 100 6.98
KITO Weissenfels by KITO Weissenfels

KITO - Grade 10 Single Leg Master Link - DG1 Series to BS-EN 1677-4

£42.59
£42.59
Tax included. Shipping calculated at checkout.
