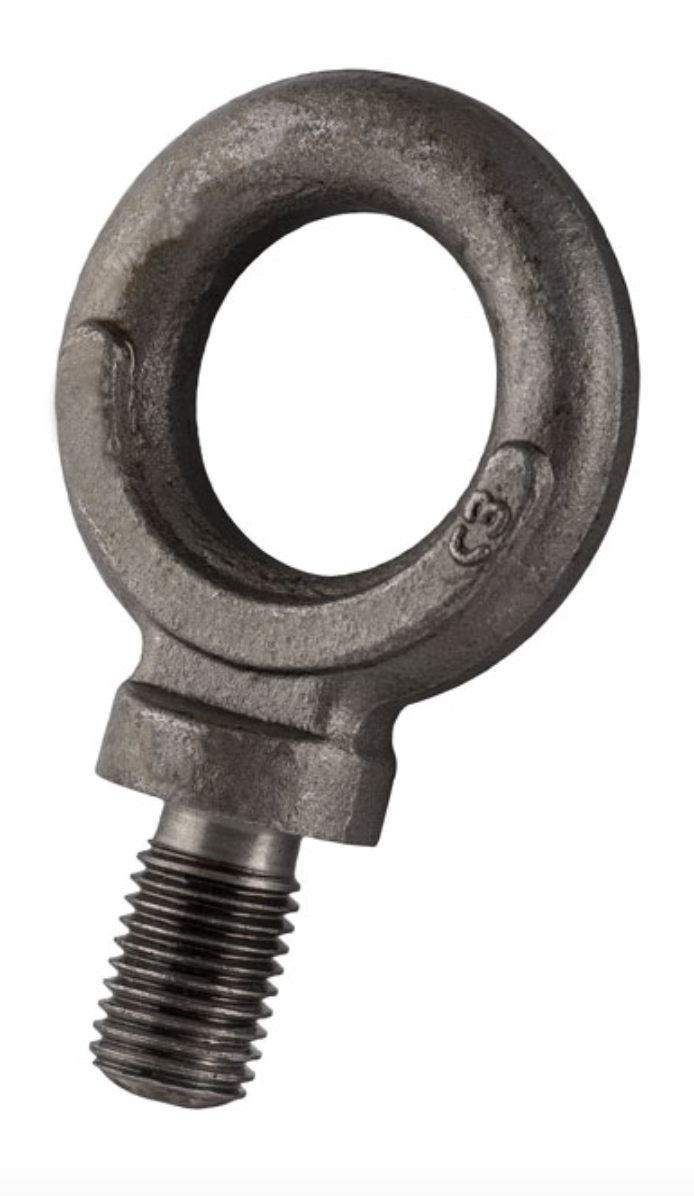

High Tensile Dynamo Eyebolt Whitworth Thread
  • Drop forged, high tensile steel, heat treated.
  • Self colour and electro galvanised finish.
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, size and product ID mark.
  • To be used for vertical lifting only.
  • Certification available

Please note the Whitworth Thread Eyebolt are manufactured to order and if not in stock  lead-the time will be a few days (dependent on quantity). This will be confirmed at point of ordering by our sales team.



      Spec

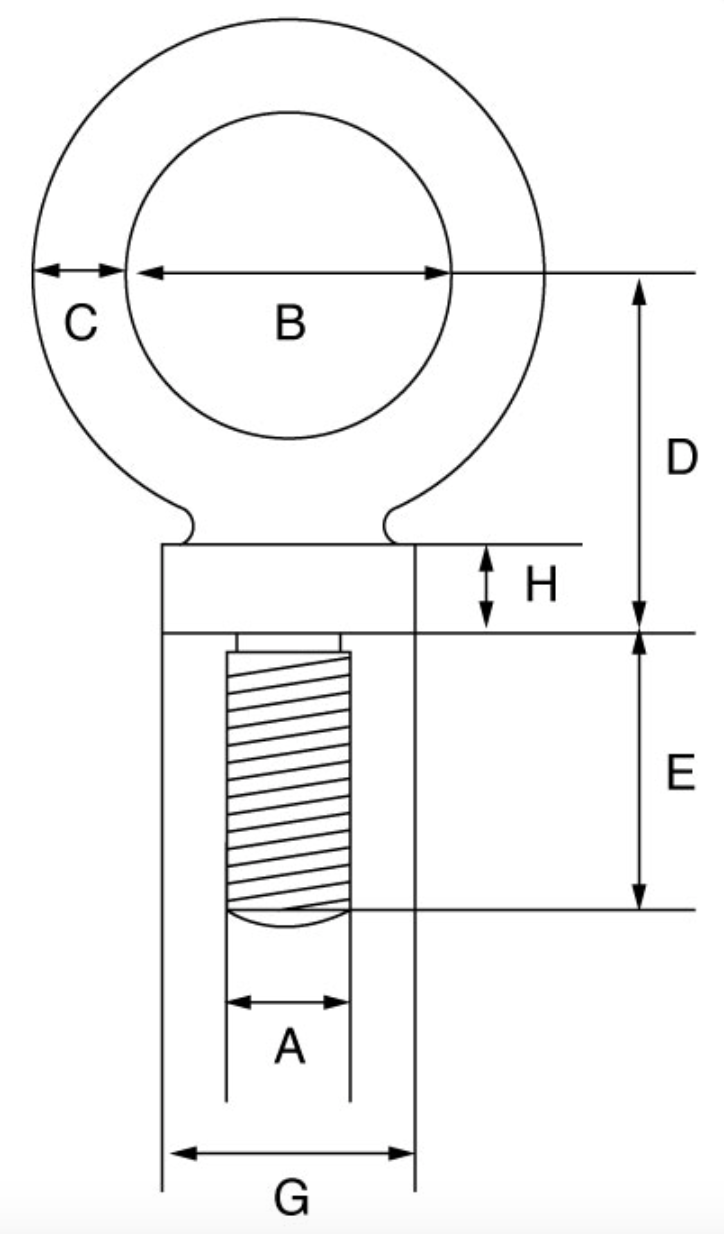

      SKU W.L.L. A B C D E G H Weight
      t mm mm mm mm mm mm mm kgs
      286-623-1 0.1 1/4 22 10 26 19 19 6 0.08
      286-623-2 0.15 5/16 22 10 26 19 19 6 0.09
      286-623-3 0.25 3/8 22 10 26 19 19 6 0.09
      286-623-4 0.5 1/2 29 10.3 35 26 25 8 0.14
      286-623-5 0.8 5/8 32 13 41 30 29 9.5 0.24
      286-623-6 1.2 3/4 41 16 54 33 35 11.1 0.43
      286-623-7 2.2 1 52 20.4 62 46 41 12.7 0.88

       Downloads

      High Tensile Dynamo Eyebolt Whitworth Thread
      • Drop forged, high tensile steel, heat treated.
      • Self colour and electro galvanised finish.
      • Minimum breaking load is 5 times the W.L.L.
      • Marked with CE, W.L.L, size and product ID mark.
      • To be used for vertical lifting only.
      • Certification available

      Please note the Whitworth Thread Eyebolt are manufactured to order and if not in stock  lead-the time will be a few days (dependent on quantity). This will be confirmed at point of ordering by our sales team.



          Spec

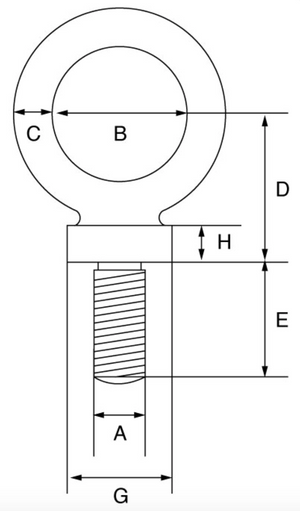

          SKU W.L.L. A B C D E G H Weight
          t mm mm mm mm mm mm mm kgs
          286-623-1 0.1 1/4 22 10 26 19 19 6 0.08
          286-623-2 0.15 5/16 22 10 26 19 19 6 0.09
          286-623-3 0.25 3/8 22 10 26 19 19 6 0.09
          286-623-4 0.5 1/2 29 10.3 35 26 25 8 0.14
          286-623-5 0.8 5/8 32 13 41 30 29 9.5 0.24
          286-623-6 1.2 3/4 41 16 54 33 35 11.1 0.43
          286-623-7 2.2 1 52 20.4 62 46 41 12.7 0.88

           Downloads

          GT by GT

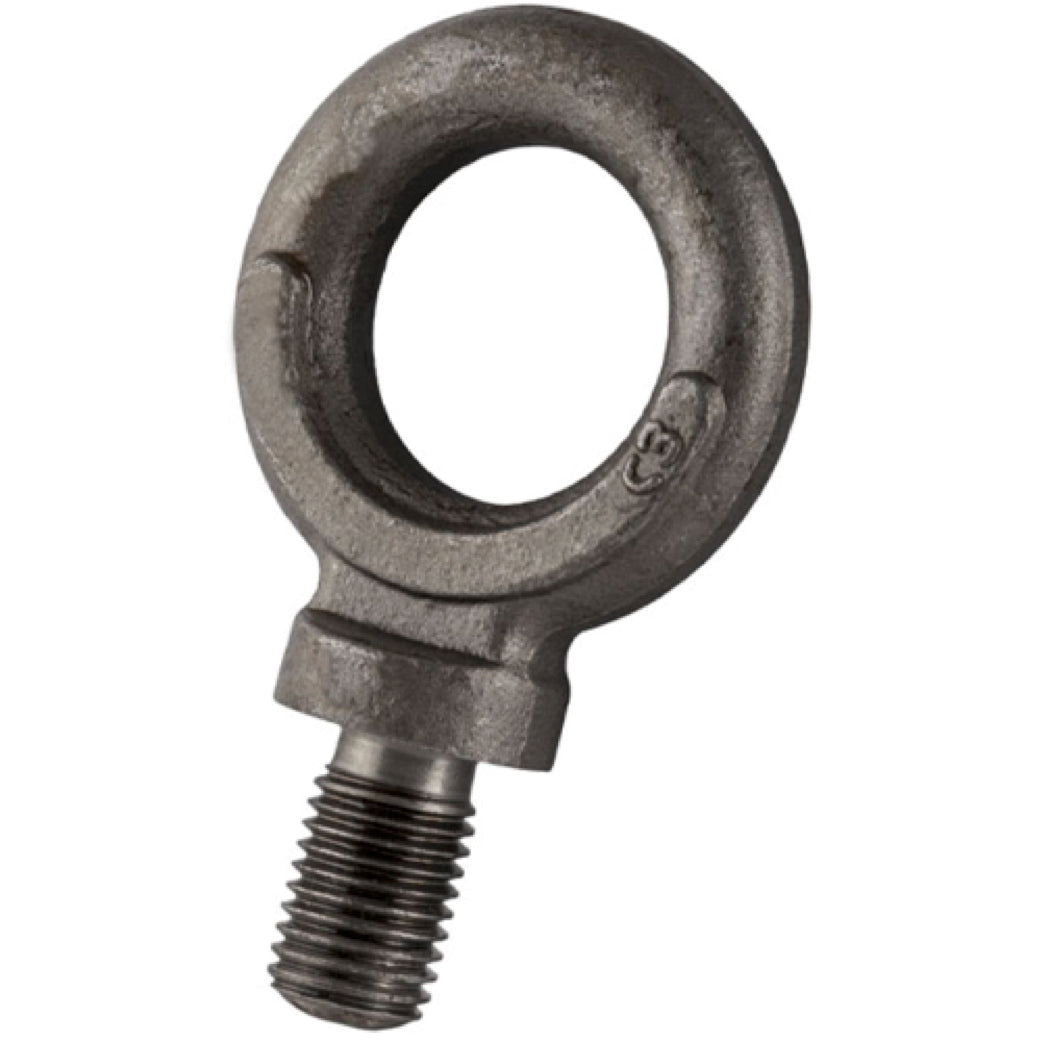

          High Tensile Dynamo Eyebolt Whitworth Thread
