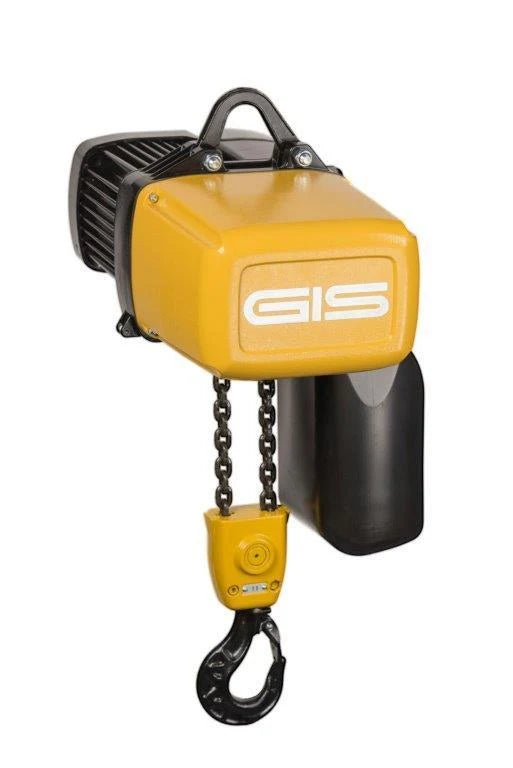

GIS GP250/1NF ELECTRIC CHAIN HOIST WITH EYE SUSPENSION - MAX 400kg SWL

The GIS GP250/1NF electric chain hoist is a reliable and durable tool used for lifting and moving heavy loads in various industrial applications. With a maximum lifting capacity of 400kg , it provides safe and efficient performance, making it a valuable asset for any workplace requiring heavy lifting operations.

OVERVIEW

• 400v 3 Phase 50hz
• Max Working Load of 400kg
• Manufactured in Switzerland
• Reliable and long-lasting
• 3 year warranty
• Short delivery time, normally 2 to 3 working days from order date

PRODUCT CHARACTERISTICS

• Chain safety factor minimum 8-times (1-fall in FEM, 2m, ISO, M5)
• Twin hoisting speed as standard, single speed available
• Manganese phosphated profile steel chain with increased service life and improved dry-running properties
• Gearbox with permanent lubrication
• High safety in operation
• Low-wear DC-spring-loaded brake
• No sensitive electronics used
• Aluminium casing and cover Minimum 1,600 operating hours with 40% duty cycle, 240 s/h (FEM: 2m, ISO M5)
• Dry-running slipping clutch
• Area of application -15° to +50°C
• Eyebolt or hook suspension Lifting heights up to 200 m

• Easy to operate
• Low dead weight from 14 kg
• Compact housing with low headroom
• Protection class IP65; hoist suitable for outdoor use with additional features like weather cover or parking kennel
• Geared limit switches with high accuracy in positioning of the highest and lowest hook position
• Ergonomic control switch with emergency stop
• 42 V low voltage control
• Quiet running with 3-step drive and helical gearing
• Load hook rotated through 360 degrees, with locking safety catch and rubber buffer
• No special tools for maintenance needed
• Easy to maintain, wearing parts can be changed easily and quickly

Customer Specific Options

• Three- or single-phase power
• Worldwide operation voltages
• Various control voltages
• Direct control, special control, radio remote control, frequency inverter
• Special hoisting speeds
• Special versions such as synchronised electric chain hoist, low headroom version, corrosion resistant version, ATEX
• Hook path with upper and lower end position individually adjustable
• Temperature monitoring
• Operating data counter
• Wide range of accessories and options

The delivery lead-time for the GIS GP250/1NF chain hoist is normally from 1 to 3 working days from order.

If you require chain lengths not detailed on our web site, or require either a push or powered travel trolley please email through your enquiry to sales@rigginguk.co.uk
