Product Information

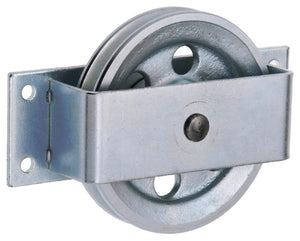

Galvanised Cast Iron Side Mounted Pulley Type ETT-170 : 100kg to 500kg
  • WEBI Galvanised cast iron pulley with bearing and pressed steel bracket
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • Capacities from 100kg up to 500 kg
  • To suit either 2.5mm, 3mm, 4mm or 5mm wire rope (see specification PDF for full details)
  • For use with manual and powered winches (any applications where rope needs to be diverted)
  • SWISS MADE "ETTER"


Spec

Model Capacity Pulley Diameter Rope Diameter
155-3-1 100 kg 50 mm 2.5 mm
155-3-2 100 kg 60 mm 3 mm
155-3-3 200 kg 80 mm 4 mm
155-3-4 300 kg 100 mm 4 mm
155-3-5 400 kg 120 mm 5 mm
155-3-6 500 kg 150 mm 6.5 mm

    Downloads

    PulleysPulley Cat 2018

    PulleysEtter 170 Pulley Data Sheet

    Galvanised Cast Iron Side Mounted Pulley Type ETT-170 : 100kg to 500kg
    • WEBI Galvanised cast iron pulley with bearing and pressed steel bracket
    • Complete with bearing and fixing bolt
    • Material finish - galvanised cast iron
    • Capacities from 100kg up to 500 kg
    • To suit either 2.5mm, 3mm, 4mm or 5mm wire rope (see specification PDF for full details)
    • For use with manual and powered winches (any applications where rope needs to be diverted)
    • SWISS MADE "ETTER"


    Spec

    Model Capacity Pulley Diameter Rope Diameter
    155-3-1 100 kg 50 mm 2.5 mm
    155-3-2 100 kg 60 mm 3 mm
    155-3-3 200 kg 80 mm 4 mm
    155-3-4 300 kg 100 mm 4 mm
    155-3-5 400 kg 120 mm 5 mm
    155-3-6 500 kg 150 mm 6.5 mm

      Downloads

      PulleysPulley Cat 2018

      PulleysEtter 170 Pulley Data Sheet

      Etter (WEBI) Pulleys by Etter (WEBI) Pulleys

      Galvanised Cast Iron Side Mounted Pulley Type ETT-170 : 100kg to 500kg

      £42.00
      £42.00
      Tax included. Shipping calculated at checkout.

      155-3-1
