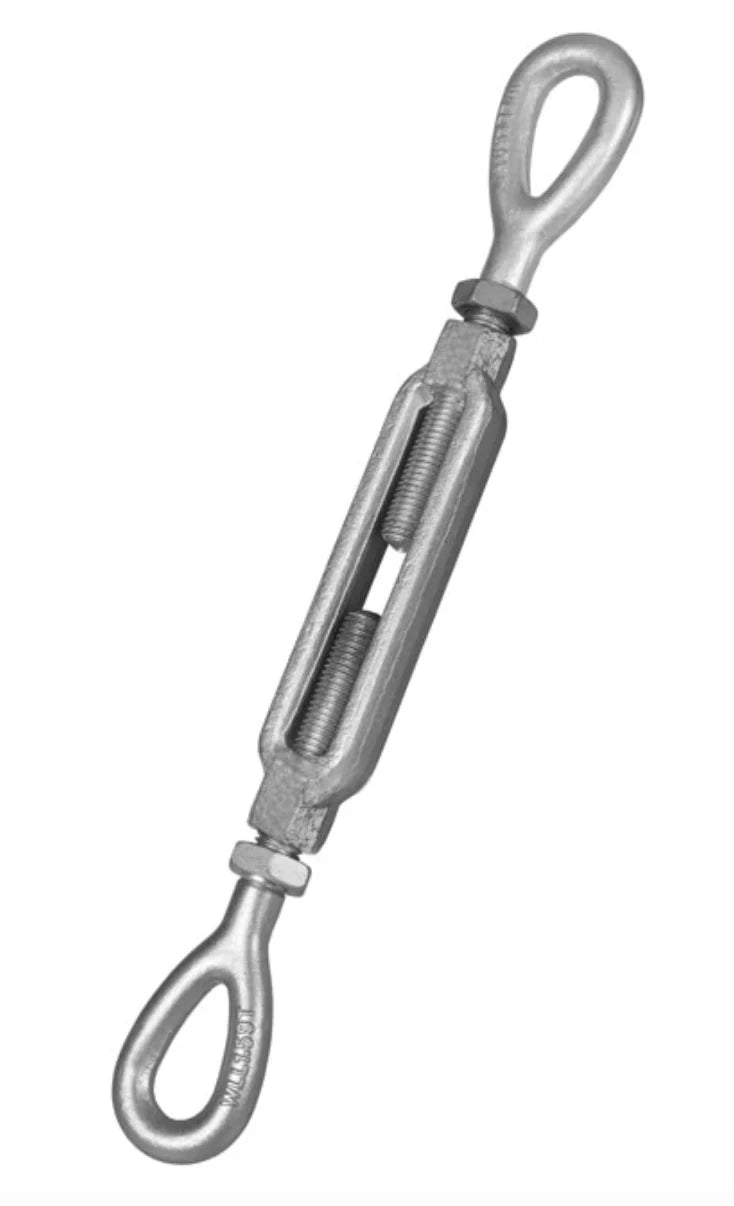

Drop Forged Turnbuckle Eye/Eye - US Style

  • Drop forged, high tensile steel, SAE 1035 or SAE 1045.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
  • Temperature range -20ºC up to +200ºC.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • UNC Threads.
  • All items available with lock nuts.
  • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
  • Certification available



        Spec

        SKU Size Take Up W.L.L. A B R S C O Weight
        inches inches t mm mm mm mm mm mm kgs
        286-901-1 3/8 6 0.54 180 152 28.5 13.5 308 460 0.34
        286-901-2 1/2 6 1 190 152 36.5 18 380 532 0.71
        286-901-3 1/2 9 1 267 229 36.5 18 456 685 0.85
        286-901-4 1/2 12 1 343 305 36.5 18 510 815 1
        286-901-5 5/8 6 1.59 203 152 45 22.5 398 550 1.17
        286-901-6 5/8 9 1.59 279 229 45 22.5 474 703 1.42
        286-901-7 5/8 12 1.59 355 305 45 22.5 550 855 1.67
        286-901-8 5/8 18 1.59 1.92
        286-901-9 3/4 6 2.36 213 152 53 25.4 448 600 1.87
        286-901-10 3/4 9 2.36 289 229 53 25.4 524 753 2.22
        286-901-11 3/4 12 2.36 365 305 53 25.4 600 900 2.57
        286-901-12 3/4 18 2.36 517 457 53 25.4 752 1209 3.27
        286-901-13 7/8 12 3.27 374 304 60 32 630 934 3.77
        286-901-14 7/8 18 3.27 527 457 60 32 782 1239 4.7
        286-901-15 1 6 4.54 233 152 76 37 552 704 4.1
        286-901-16 1 12 4.54 385 305 76 37 704 1009 5.33
        286-901-17 1 18 4.54 537 457 76 37 856 1313 6.56
        286-901-18 1 24 4.54 690 610 76 37 1010 1620 7.83
        286-901-19 1 1/4 12 6.89 388 305 90 46 776 1081 9.1
        286-901-20 1 1/4 18 6.89 541 457 90 46 928 1385 10.94
        286-901-21 1 1/4 24 6.89 693 610 90 46 1080 1690 12.75
        286-901-22 1 1/2 12 9.71 403 305 103 53.8 838 1143 12.93
        286-901-23 1 1/2 18 9.71 555 457 103 53.8 990 1447 15.43
        286-901-24 1 1/2 24 9.71 708 610 103 53.8 1144 1754 17.97
        286-901-25 1 3/4 18 12.7 571 457 117 60.5 1076 1544 23.37
        286-901-26 1 3/4 24 12.7 724 610 117 60.5 1230 1840 26.91
        286-901-27 2 24 16.8 740 610 146 68 1400 2010 39.93
        286-901-28 2 1/2 24 27.2 795 610 165 79 1490 2100 70.96
        286-901-29 2 3/4 24 34 795 610 178 82.5 1562 2172 82.22
