Product Information

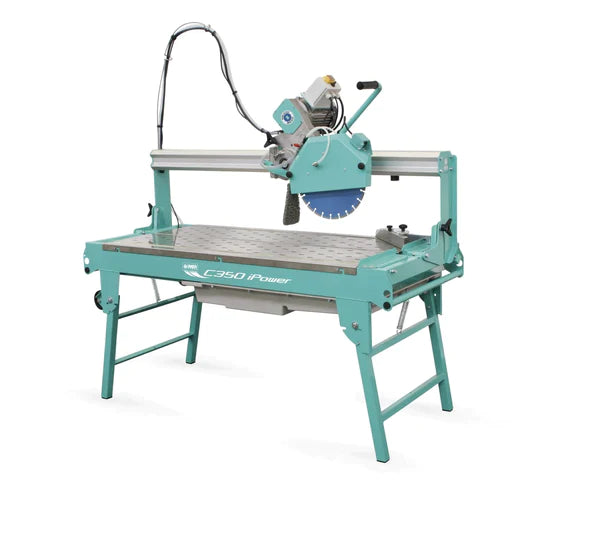

IMER C350i Power Masonry, Stone & Marble Saw - Combi - 230V

A high power saw for cutting marble, bricks and stone.

It is designed both for building sites and for the installer. It allows installer to cut tiles up to 1200 mm length with plunge cutting.

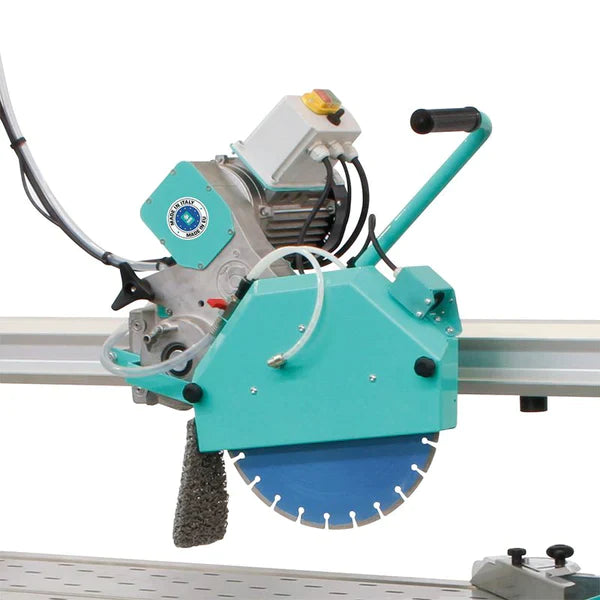

The C350i Power can be also used in building sites to cut blocks up to 250 mm height with two passes. The tilting cutting head allows for high speed in performing special cuts.

(45° bevel cut in only 5 min. – no optional cutting accessories are required).

The saw can be lowered as the legs fold underneath and can be transported in a van. It comes with a GP Diamond Blade but types of blades for specific materials are available.


Spec

SKU 294-4-13
Blade/Bore Diameter mm 350/25.4
Max. Cutting Length (plunge cutting) mm 1050 (1200)
Max. Cutting Depth, 1/2 runs mm 120/250
Cutting Surface Dimensions mm 139x696
Work Table Height mm 785
Electric Power Supply v/Hz 230 / 50 Sph 230 / 60 Sph
Moter Power Rate kW 2.5
Motor Speed rpm 2800
Running Current A 15
Water Recovery Tray Capacity L 40
Machine Dimensions w/l/h mm 60/1746/1410
Packing Dimensions mm 746/1770/1080
Machine Weight (packed) kg 113 (133)
Max. Stackability 2 (h 2400mm)
