Product Information

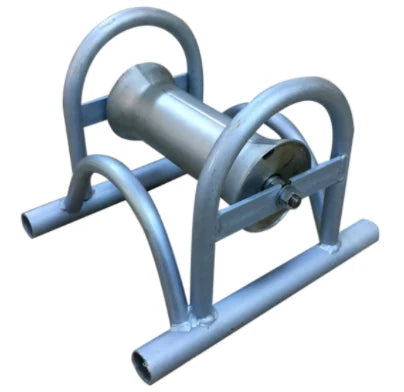

Cable Bridge Roller Pipe Plate - Wide Model for Cable Diameters up to 220mm

Cable Bridge Roller Pipe Plate with extended design to suit up to 220mm diameter cables with a maximum load of 500kg. Can be placed over a cable up to 190mm diameter already laid in the trench. These cable bridge rollers are wider than most other models available in the UK.

  • Suitable for cables up to 220mm diameter.
  • Maximum payload of 500kg.
  • Manufactured in high strength steel construction with galvanised finish.
  • Water proof ball bearings which are protected against dirt.
  • Bridge clearance

Specification

Product code 124-3-4
Payload (kg) 500
Maximum Cable diameter (mm) 220
Weight (kg) 6,50
Length (mm) 330
Width (mm) 270
Height (mm) 300

Cable Bridge Roller Pipe Plate - Wide Model for Cable Diameters up to 220mm

Cable Bridge Roller Pipe Plate with extended design to suit up to 220mm diameter cables with a maximum load of 500kg. Can be placed over a cable up to 190mm diameter already laid in the trench. These cable bridge rollers are wider than most other models available in the UK.

  • Suitable for cables up to 220mm diameter.
  • Maximum payload of 500kg.
  • Manufactured in high strength steel construction with galvanised finish.
  • Water proof ball bearings which are protected against dirt.
  • Bridge clearance

Specification

Product code 124-3-4
Payload (kg) 500
Maximum Cable diameter (mm) 220
Weight (kg) 6,50
Length (mm) 330
Width (mm) 270
Height (mm) 300
Temha Makine by Temha Makine

Cable Bridge Roller Pipe Plate - Wide Model for Cable Diameters up to 220mm

£61.80
£61.80
Tax included. Shipping calculated at checkout.

124-3-4
