Product Information

45kg Hand Winch Kits

Compromises;

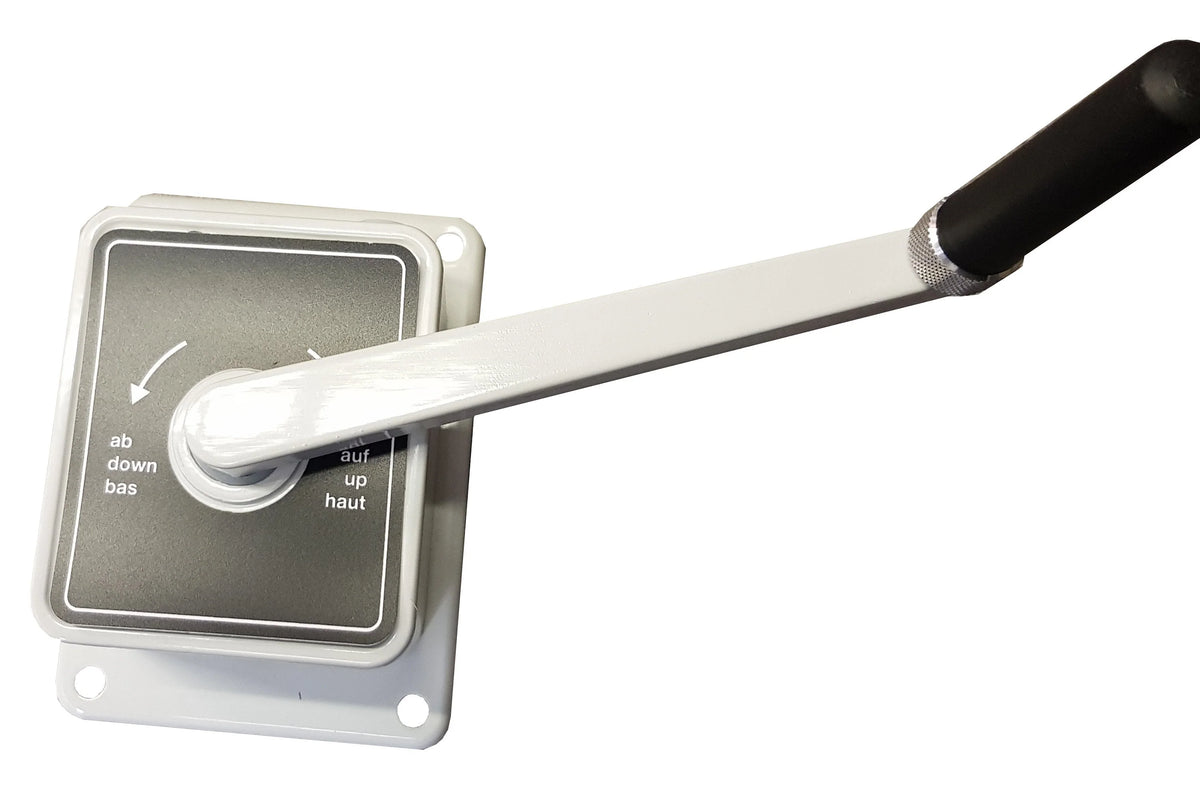

A 45kg hand operated winch (type AG45) designed for light duty application, for example - raising blinds, gym & fitness equipment, shutters, clothes lines, washing lines and chandeliers,
Designed for light to medium duty applications.
Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish.

Spur gear operation
Self locking brake
Quiet running with low crank effort, removable crank and low weight
Commonly used in washing line applications

Specification

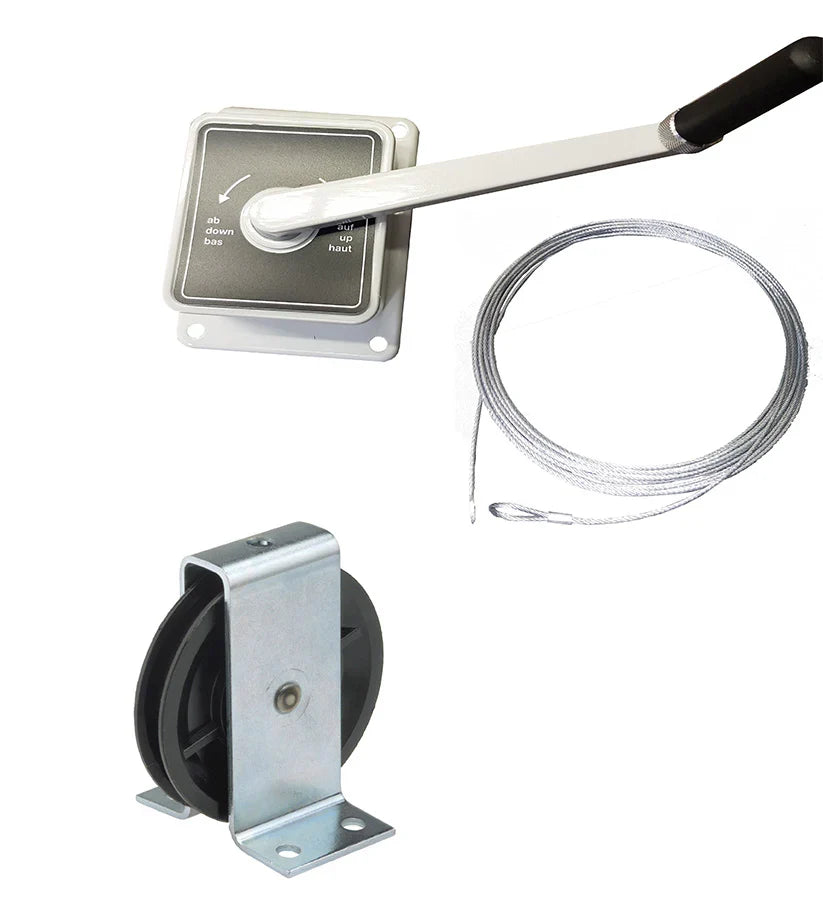

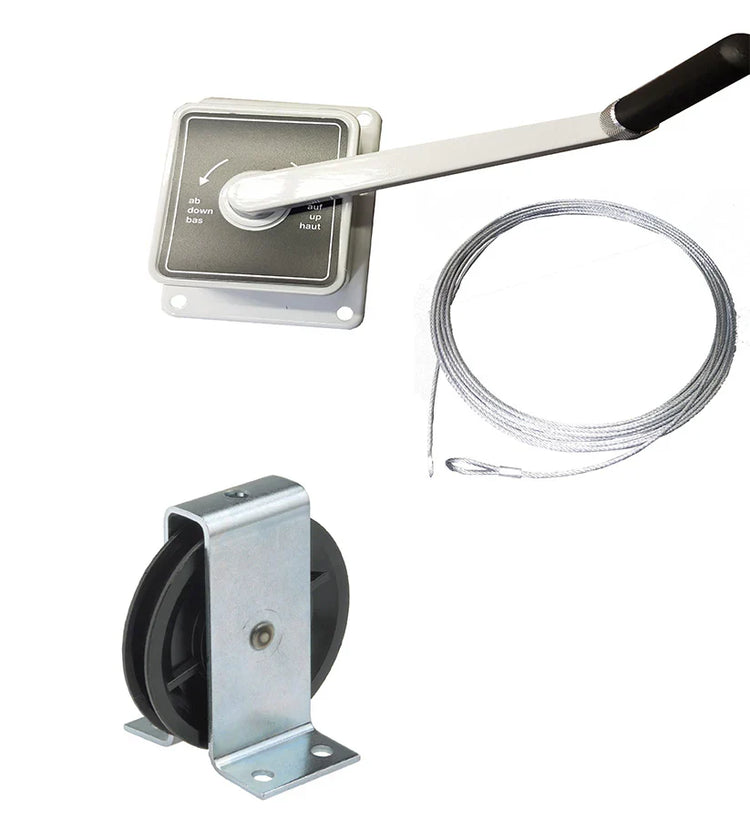

Kit A (152-1-6) Winch comes with:

  • 1 x AG45 Winch with removable handle SWL 45kg
  • 1 x 2mm dia,12m Galv 7x19, wire rope - loop crimped with aluminium ferrule.
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 1 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155-1-1 / 50mm Dia, 60kg Capacity to suit 3mm dia wire rope - useful for diverting wire rope.

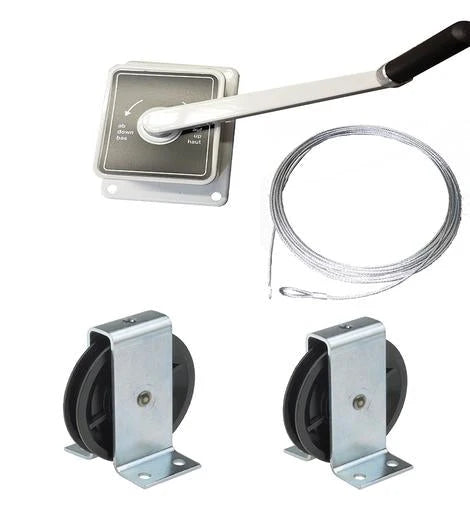

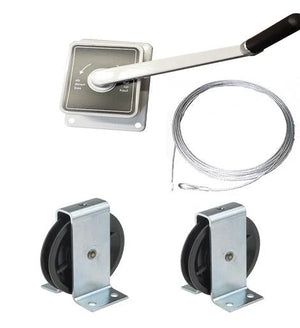

Kit B (152-1-7) Winch comes with:

  • 1 x AG45 Winch with removable handle SWL 45kg
  • 1 x 2mm dia,12m Galv 7x19, wire rope - loop crimped with aluminium ferrule.
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 2 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155-1-1 / 50mm Dia, 60kg Capacity to suit 3mm dia wire rope - useful for diverting wire rope.

Downloads

Accompanying product imageData sheet

45kg Hand Winch Kits

Compromises;
A 45kg hand operated winch (type AG45) designed for light duty application, for example - raising blinds, gym & fitness equipment, shutters, clothes lines, washing lines and chandeliers,
Designed for light to medium duty applications.
Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish.

Spur gear operation
Self locking brake
Quiet running with low crank effort, removable crank and low weight
Commonly used in washing line applications

Specification

Kit A (152-1-6) Winch comes with:

  • 1 x AG45 Winch with removable handle SWL 45kg
  • 1 x 2mm dia,12m Galv 7x19, wire rope - loop crimped with aluminium ferrule.
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 1 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155-1-1 / 50mm Dia, 60kg Capacity to suit 3mm dia wire rope - useful for diverting wire rope.

Kit B (152-1-7) Winch comes with:

  • 1 x AG45 Winch with removable handle SWL 45kg
  • 1 x 2mm dia,12m Galv 7x19, wire rope - loop crimped with aluminium ferrule.
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 2 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155-1-1 / 50mm Dia, 60kg Capacity to suit 3mm dia wire rope - useful for diverting wire rope.

Downloads

Accompanying product imageData sheet

ORPTECH by ORPTECH

5.0

AG45 - 45kg Hand Winch- Kits for - Clothes/Washing lines, Fitness Equipment, Chandeliers - plus many others

£178.80
£178.80
Tax included. Shipping calculated at checkout.

152-1-6
