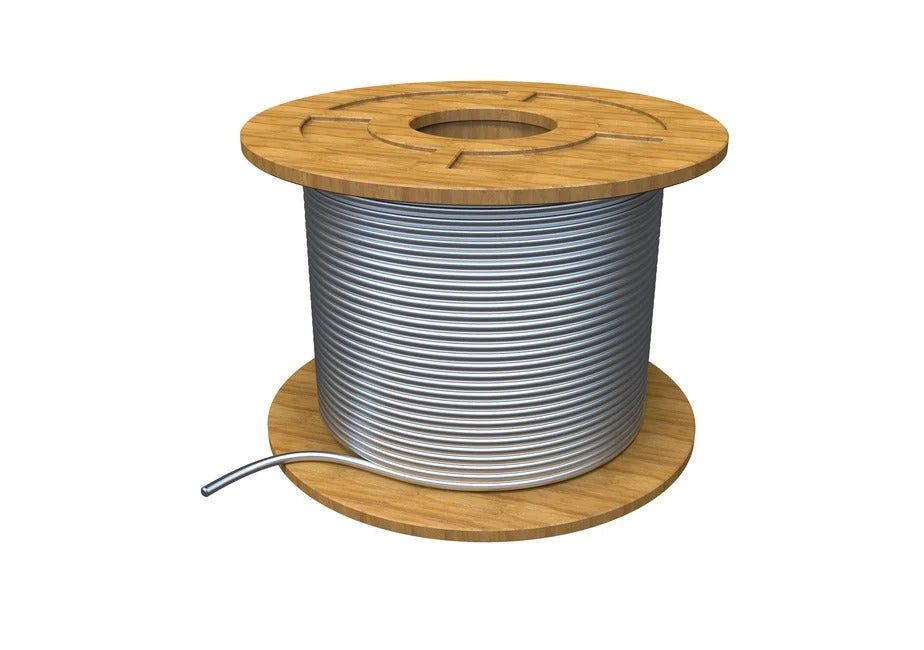

7x19 Construction Pre-Reeled Galvanised Wire Rope Cable Drum

*SOLD BY THE 100m DRUM*

7x19 WSC

The 7x19 Construction Pre-Reeled Galvanised Wire Rope Cable Drum, sold by the drum, features a steel wire strand core for enhanced durability and flexibility while maintaining a strong breaking strain. Ideal for general engineering tasks, this versatile rope is suitable for lifting, winching, and safety applications. Available in diameters from 3mm to 12mm, and supplied on 100m wooden reels, it offers reliable performance for a range of uses.

Specification

Diameter 1770 Grade
Minimum Breaking Load		 1960 Grade
Minimum Breaking Load		 Approx Weight
(kg/100 metres)
3.0mm 588kg 651kg 3.43
4.0mm 1045kg 1157kg 6.10
5.0mm 1633kg 1808kg 9.53
6.0mm 2351kg 2604kg 13.70
7.0mm 3200kg 3544kg 19.50
8.0mm 4180kg 4629kg 25.50
9.0mm 5291kg 5858kg 32.20
10.0mm 6531kg 7233kg 39.80

7x19 Construction Pre-Reeled Galvanised Wire Rope Cable Drum

*SOLD BY THE 100m DRUM*

7x19 WSC

The 7x19 Construction Pre-Reeled Galvanised Wire Rope Cable Drum, sold by the drum, features a steel wire strand core for enhanced durability and flexibility while maintaining a strong breaking strain. Ideal for general engineering tasks, this versatile rope is suitable for lifting, winching, and safety applications. Available in diameters from 3mm to 12mm, and supplied on 100m wooden reels, it offers reliable performance for a range of uses.

Specification

Diameter 1770 Grade
Minimum Breaking Load		 1960 Grade
Minimum Breaking Load		 Approx Weight
(kg/100 metres)
3.0mm 588kg 651kg 3.43
4.0mm 1045kg 1157kg 6.10
5.0mm 1633kg 1808kg 9.53
6.0mm 2351kg 2604kg 13.70
7.0mm 3200kg 3544kg 19.50
8.0mm 4180kg 4629kg 25.50
9.0mm 5291kg 5858kg 32.20
10.0mm 6531kg 7233kg 39.80
RiggFix by RiggFix

7x19 Galvanised Steel Wire Rope - 100m Reels

£33.37
£33.37
Tax included. Shipping calculated at checkout.
