Ref: 168-3-15

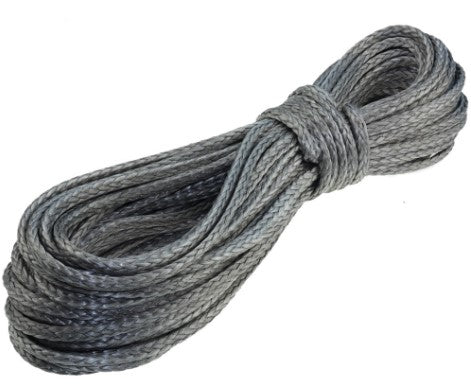

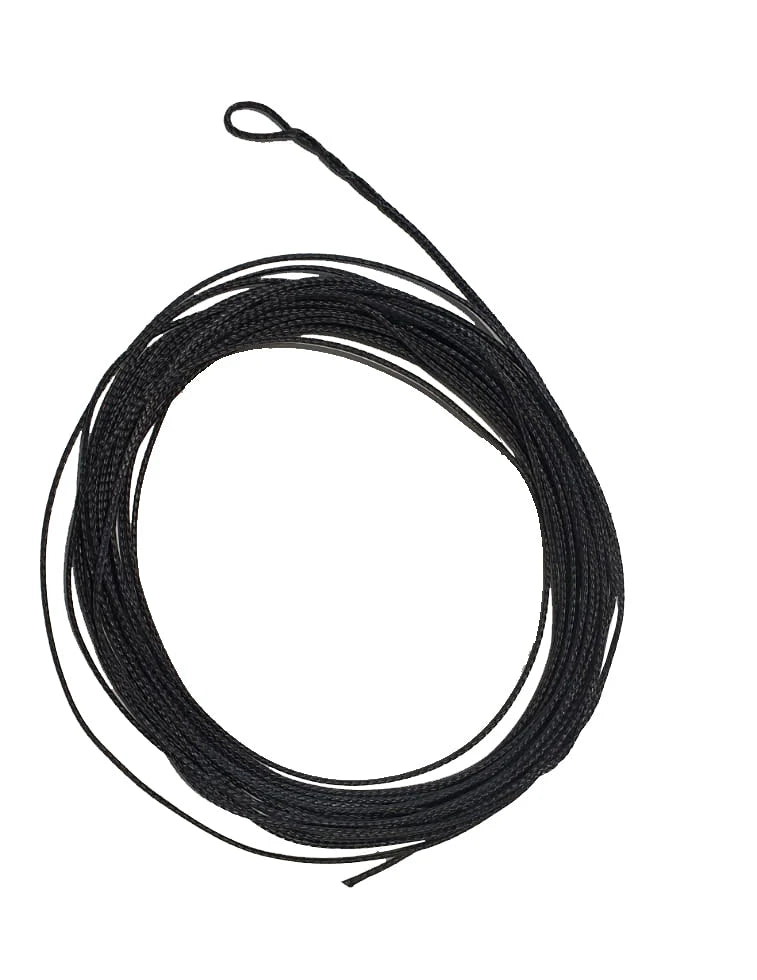

Made from the specialist fibre OX40 HMPE, this cord is easy to splice, and resistant to abrasion and most chemicals. This 12-strand construction is used to ensure maximum strength.
Features & BENEFITS
• 12 Strand construction
• Very high strength to weight ratio
• Treated with specialised coating
• Very long lasting
• Stronger than steel
• Safer than steel in operation
NOTE: Colour can vary but is mainly supplied in either grey or black in colour
| Specifications | Core | Cover |
| Construction | 12 strand | n/a |
| Material | OX40 HMPE | PU Coating |
| Specific gravity | 0.97 | n/a |
| Resistance to acid | Very Good | n/a |
| Resistance to alkali | Very Good | n/a |
| Resistance to UV | Very Good | n/a |
| Resistance to heat | Poor | n/a |
|
Dia. (mm) |
Breaking Load (kg) |
| 2 | 846 |
| 3 | 1,260 |
| 4 | 2,160 |
| 5 | 3,060 |
| 6 | 4,320 |
| 8 | 6.570 |
Data sheet
